UPPER ARM BEARINGS - FRONT

Service repair no - 68.20.18

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
  2. Remove upper arm. See this section.
Upper arm bearings - front – Remove upper arm. See this section.

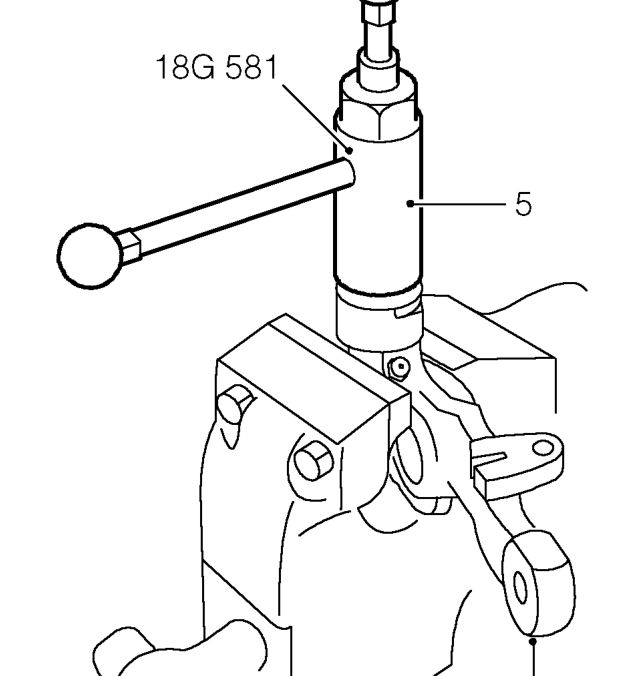

  1. Place upper arm in vice.
  2. Remove needle roller bearings using tool 18G 581 .

CAUTION: Inspect and clean bearing housings prior to reassembly. If any wear or damage is present due to worn bearings, the arm must be renewed.

Upper arm bearings - front – Remove needle roller bearings using tool 18G 581 .

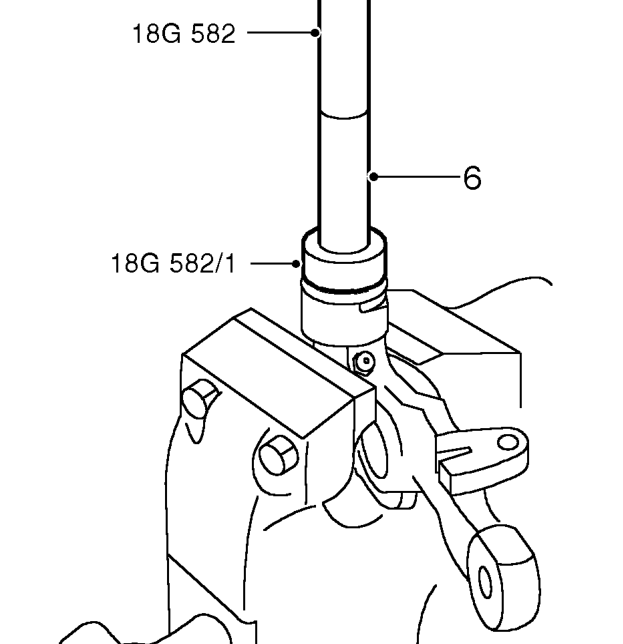

  1. Align and press NEW needle roller bearings into upper arm using tools 18G 582 and 18G 582/1

Refit

  1. Refit upper arm. See this section.
  2. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
  3. Remove stand(s) and lower vehicle.
