Lower arm - rear

LOWER ARM - REAR

Service repair no - 68.35.12

Remove

1. Remove tie bar See this section.

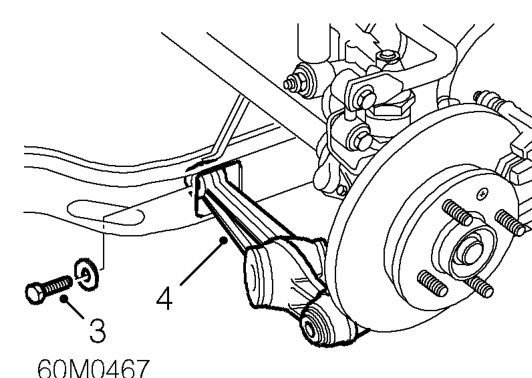

2. Remove grommet from aperture in subframe.

3. Using aperture in subframe for access, remove bolt securing lower arm to subframe.
4. Collect lower arm.

Refit

1. Position lower arm to subframe and fit bolt, do not tighten at this stage.
2. Fit tie bar See this section.
3. With vehicle at nominal trim height, tighten bolt securing lower arm to subframe to 85 Nm
4. Fit grommet to subframe aperture.

BUSHES - LOWER ARM - REAR

Service repair no - 68.35.16

Remove

1. Remove lower arm. See this section.
2. Position lower arm in a press.

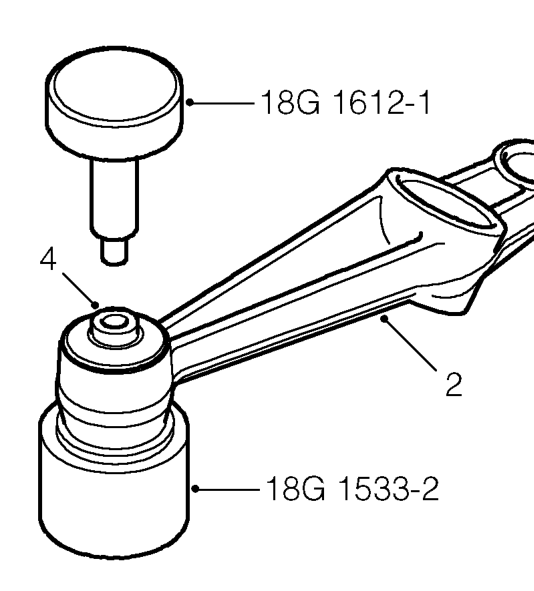

Inner bush

NOTE: Note the orientation of the inner bush in the lower arm.

3. Support lower arm with tool 18G 1533-2 so that smaller bevelled end of inner bush enters tool first.
4. Insert tool 18G 1612-1 into top of inner bush.
5. Press inner bush from lower arm.
