FRONT LOWER ARM BUSHES

Service repair no - 68.20.14

Remove

  1. Remove front lower arm. See this section.

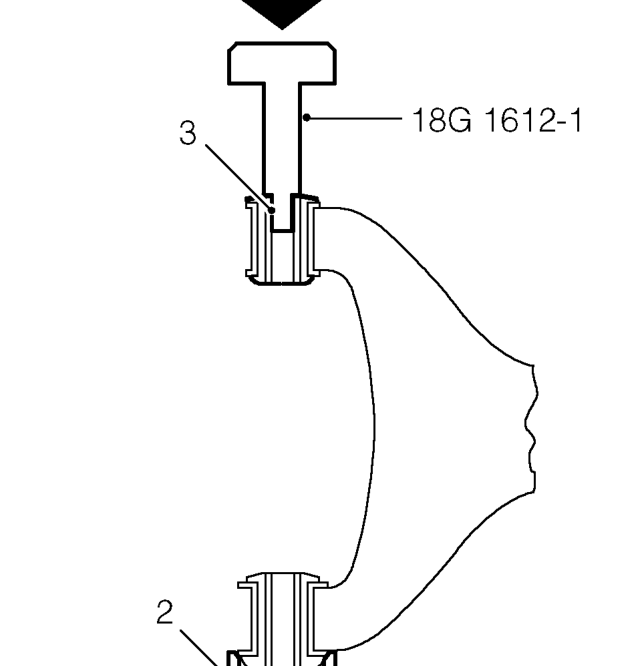

Front lower arm bushes – Remove front lower arm. See this section.
  1. Remove front bush using press, position lower arm with front bush uppermost and support with tool 18G 1612-4 under rear bush.
  2. Fit tool 18G 1612-1 to front bush and press bush from lower arm.
  3. Reposition arm under press with rear bush uppermost.

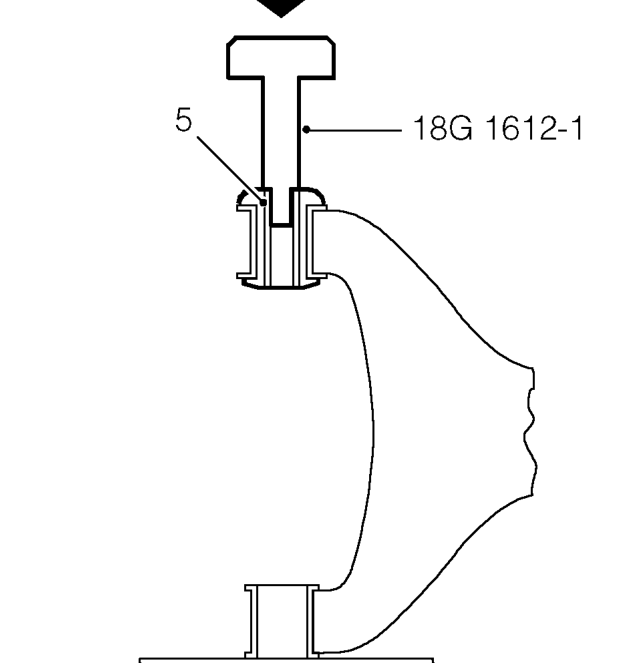

Front lower arm bushes – Reposition arm under press with rear bush uppermost.
  1. Fit tool 18G 1612-1 to rear bush and press bush from arm.

Refit

  1. Clean lower arm and bush locations.
  2. Position lower arm in press with rear bush located uppermost.
  3. Lubricate rear bush with Marlene 148 rubber lubricant.
  4. Fit tool 18G 1612-2 to rear bush location.
