Front lower arm bushes (page 2 of 2)

Make

MG

Model

MGF Factory Workshop Manual

Year

1995–2000

Section

Repairs

SuspensionFront lower arm bushes · page 2 of 2

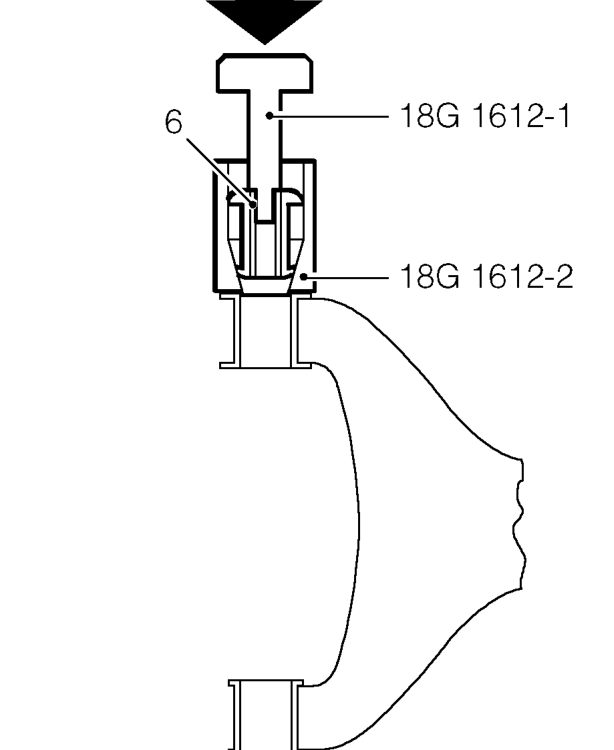

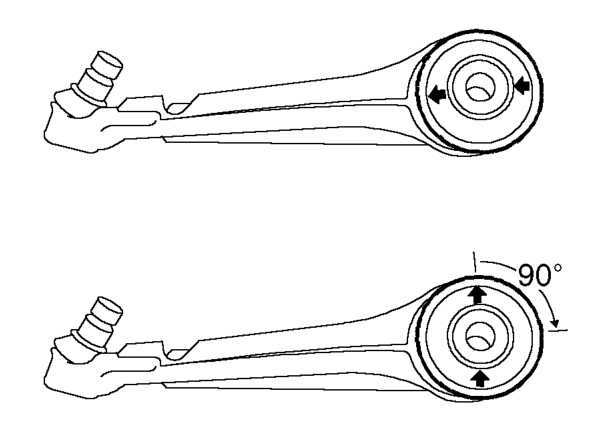

5. Fit rear bush into tool 18G 1612-2 with the rounded flange uppermost with the arrows on bush pointing 90°from ball joint for MG-F Trophy and the arrows pointing towards ball joint for all other models.

6. Fit tool 18G 1612-1 to the rear bush and press into lower arm.

7. Position lower arm with tool 18G 1612-4 .

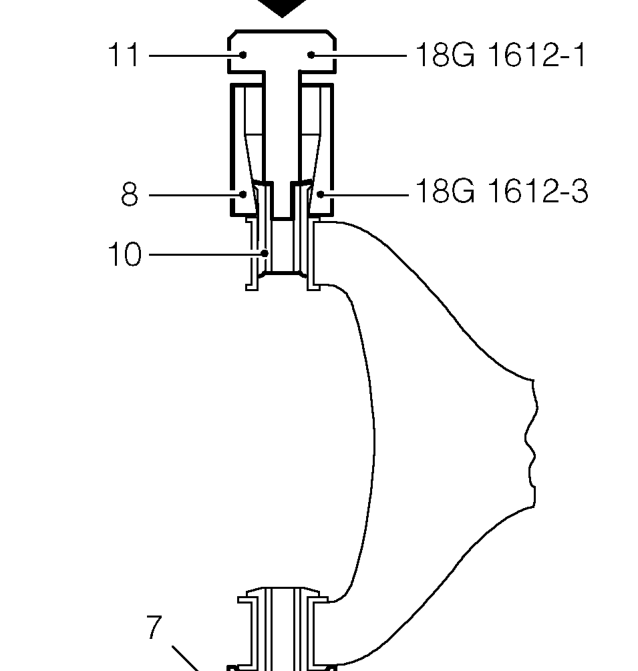

8. Fit tool 18G 1612-3 to front bush location.
9. Lubricate front bush with Marlene 148 rubber lubricant.
10. Fit bush into tool 18G 1612-3 with flat flange uppermost
11. Press bush into lower arm using tool 18G 1612-1 .
12. Remove arm from press.
13. Fit front lower arm. See this section.
