Rear hydragas unit

REAR HYDRAGAS UNIT

Service repair no - 68.30.10

Remove

1. Raise rear of vehicle.

WARNING: Support on safety stands.

2. Remove road wheel(s).
3. Depressurise one side of system. See Adjustments.
4. Remove engine compartment access panel. See BODY, Exterior fittings.

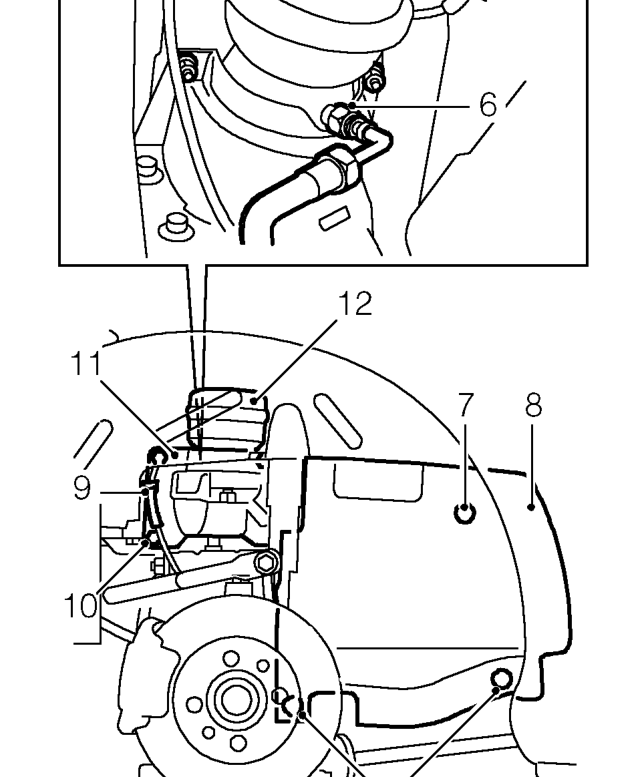

5. Remove bolts securing engine control module bracket and move aside.

6. Loosen pipe union from hydragas unit and release pipe.
7. Remove 2 scrivets and Torx screw from closing panel.
8. Remove closing panel.
9. Release ABS sensor lead.
10. Remove 4 bolts securing hydragas unit retaining plate and sensor bracket.
11. Remove retaining plate and sensor bracket.
12. Release hydragas unit from roller foot joint.
13. Remove hydragas unit.

CAUTION: Plug the connections.

Refit

1. Clean hydragas unit and roller foot joint mating faces.
2. Fit hydragas unit.
3. Align retaining plate and sensor bracket, fit bolts, and tighten to 25 Nm.
4. Secure ABS sensor lead.
5. Fit closing panel and secure scrivets.
6. Remove plugs and clean connections.
7. Reconnect pipe to hydragas unit. Tighten connection to 20 Nm.
8. Fit and tighten bolts securing engine control module bracket.
9. Fit engine compartment access panel. See BODY, Exterior fittings.
10. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
11. Remove stand(s) and lower vehicle.
12. Evacuate and pressurise hydragas system. See Adjustments.
