MG MGF Factory Workshop Manual (1995-2000)14 · Suspension
14 · Steering & suspension

Front damper

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs › Front damper
SuspensionFront damper

Refit

  1. Fit rebound rubber to subframe and tighten screw.
  2. Secure ABS sensor lead in bracket.
  3. Place trolley jack under hub and raise suspension.
  4. Remove wedge, lower suspension, and remove trolley jack.
  5. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
  6. Remove stand(s) and lower vehicle.

FRONT DAMPER

Service repair no - 68.15.16

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).

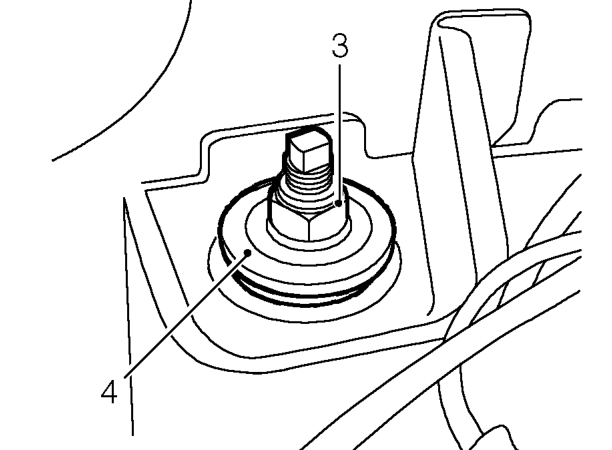

Front damper – Remove road wheel(s).
  1. Remove nut securing damper to front wing valance.
  2. Remove rubber bush and washer.
