Rear anti-roll bar

REAR ANTI-ROLL BAR

Service repair no - 68.10.10

Remove

1. Remove silencer heat shield. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
2. Remove road wheel(s).

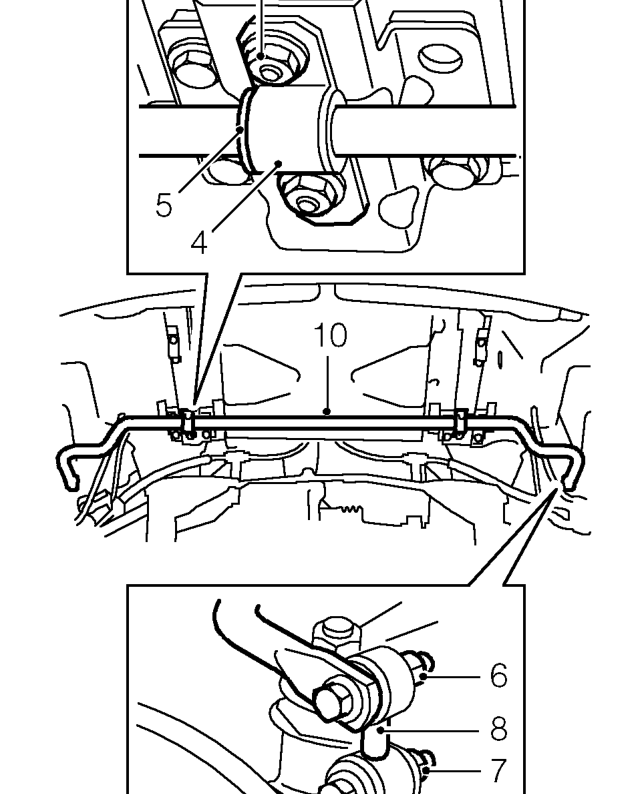

Anti-roll bar bushes

3. Remove 2 nuts securing each anti-roll bar bush clamp.
4. Remove 2 clamps.
5. Remove 2 bushes.

Anti-roll bar links

6. Remove nut and bolt securing each link to anti-roll bar.
7. Remove nut and bolt securing each link to hub abutment brackets.
8. Remove anti-roll bar links.
9. Check link bushes for wear.
10. Remove anti-roll bar.

Refit

1. Position anti-roll bar.

Anti-roll bar links

2. Fit links to anti-roll bar, do not tighten at this stage.
3. Fit links to hub abutment brackets, do not tighten at this stage.

Anti-roll bar bushes

4. Clean anti-roll bar.
5. Fit bushes and align clamps to mounting bracket studs.
6. Fit nuts to each anti-roll bar clamp and tighten to 22 Nm.
7. Tighten nuts and bolts securing anti-roll bar links to 35 Nm.
8. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
9. Fit silencer heat shield. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
