FRONT BUMP RUBBER

Service repair no - 68.15.01

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).

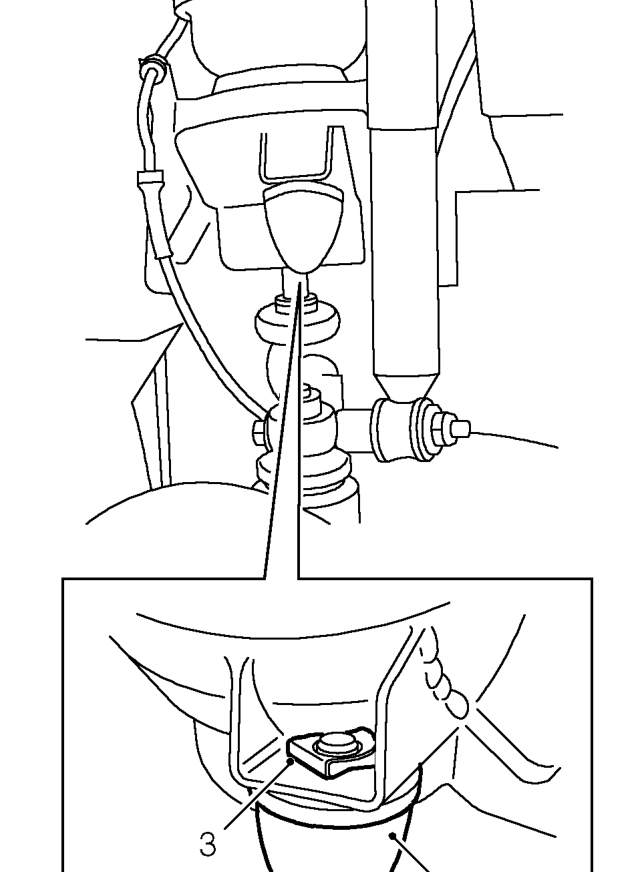

Front bump rubber – Remove road wheel(s).
  1. Remove spring clip securing bump rubber to Hydragas unit retaining plate.
  2. Collect bump rubber.

Refit

  1. Fit bump rubber and secure with spring clip.
  2. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
  3. Remove stand(s) and lower vehicle.
