UPPER BALL JOINT - FRONT HUB

Service repair no - 68.25.05

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
  2. Place jack under hub and raise suspension.
Upper ball joint - front hub – Place jack under hub and raise suspension.

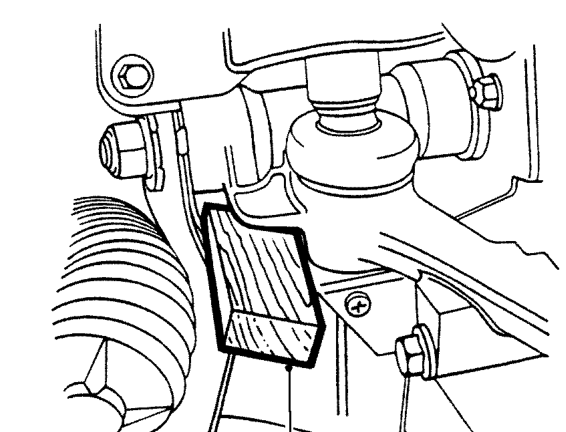

  1. Fit a wedge between suspension arm and subframe, lower suspension onto wedge and remove jack.

CAUTION: Ensure that an appropriate wedge is used to prevent any damage occurring to the suspension components.

Upper ball joint - front hub – Fit a wedge between suspension arm and subframe, lower suspension onto wedge and remove ja

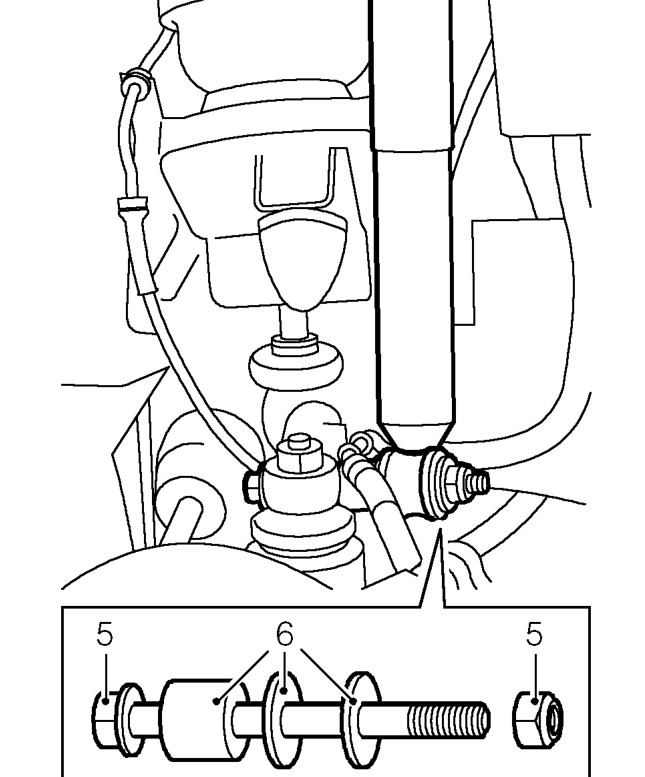

  1. Remove nut and bolt securing brake hose to upper arm.
  2. Collect spacer and 2 washers.
