SuspensionLower arm - rear · page 2 of 2

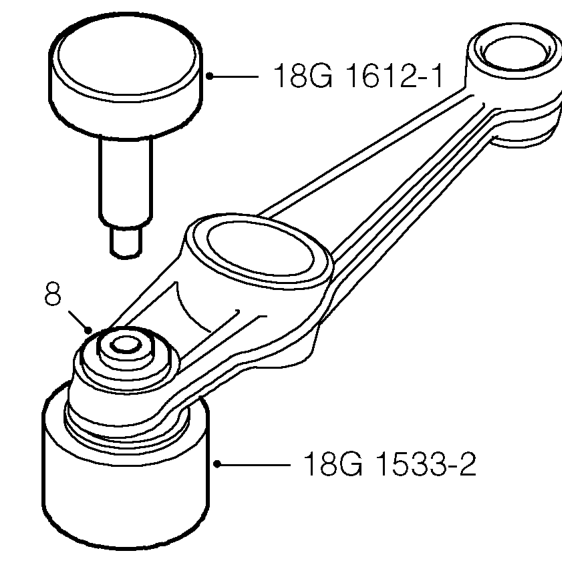

Outer bush

Outer bush
  1. Support lower arm with tool 18G 1533-2 to allow outer bush to enter tool.
  2. Insert tool 18G 1612-1 into top of outer bush.
  3. Press outer bush from lower arm.

Refit

  1. Clean lower arm bush locations.

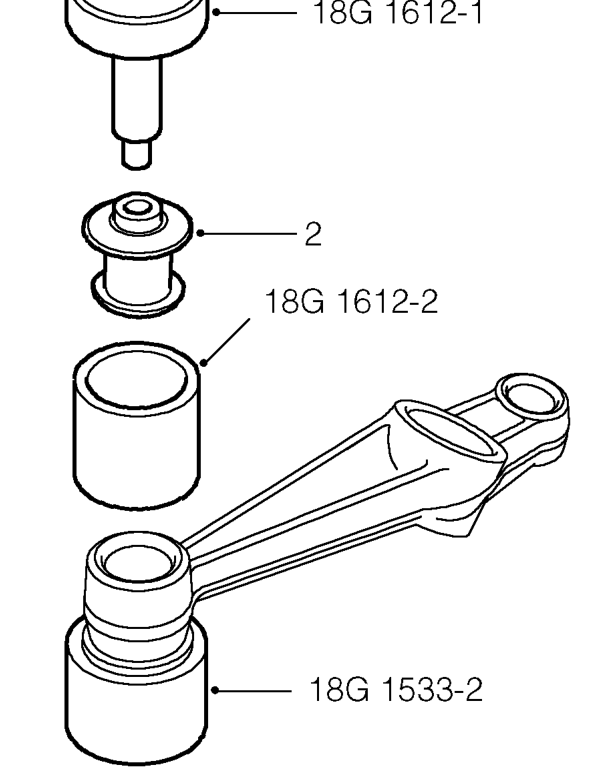

Inner bush

Inner bush
  1. Lubricate inner bush with Marlene 148 rubber lubricant.
  2. Support lower arm on tool 18G 1533-2 .
  3. Insert inner bush into guide tool 18G 1612-2 so that smaller bevelled end of bush enters lower arm first.
  4. Position guide tool to top of lower arm.
  5. Insert tool 18G 1612-1 into top of inner bush.
  6. Press inner bush into position.
