MG MGF Factory Workshop Manual (1995-2000)14 · Suspension
14 · Steering & suspension

Subframe - front (page 4 of 6)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
SuspensionSubframe - front · page 4 of 6
Diagram

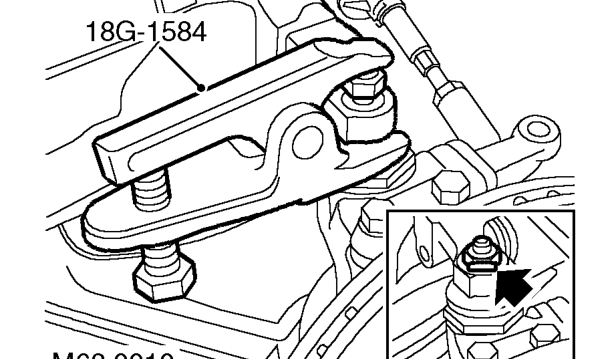

  1. Remove nuts securing track rod ends to hubs and release tapers using 18G-1584 .
Remove nuts securing track rod ends to hubs and release tapers using 18G-1584 .

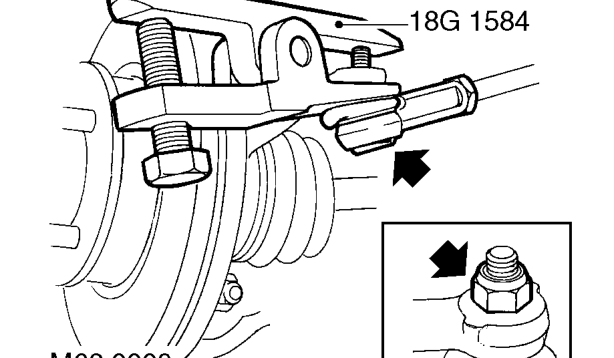

  1. Release lock washer from top arm ball joint nut.
  2. Remove nut and lock washer from top arm ball joint nut.
  3. Release taper joint from top arm using 18G-1584.
Release taper joint from top arm using 18G-1584.

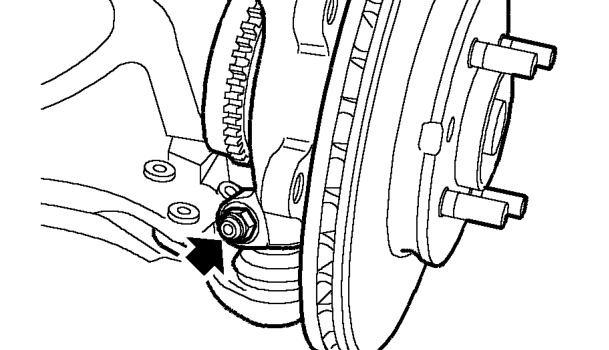

  1. Remove nut and bolt securing bottom ball joint and release ball joint.
  2. Remove hub assembly.
Remove hub assembly.

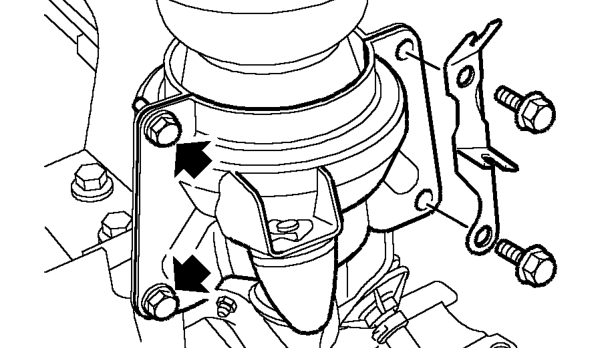

  1. Remove 4 bolts securing left hand hydragas unit retaining plate.
  2. Collect retaining plate, ABS sensor lead bracket, and hydragas unit.
