MG MGF Factory Workshop Manual (1995-2000)14 · Suspension
14 · Steering & suspension

Subframe - front (page 5 of 6)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
SuspensionSubframe - front · page 5 of 6
Diagram

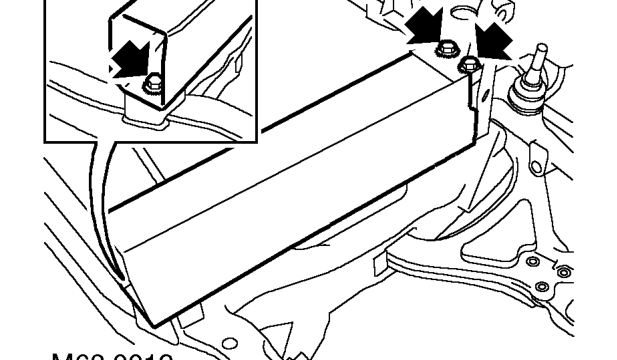

  1. Remove 3 bolts securing LH crash can to subframe and remove crash can.
Remove 3 bolts securing LH crash can to subframe and remove crash can.

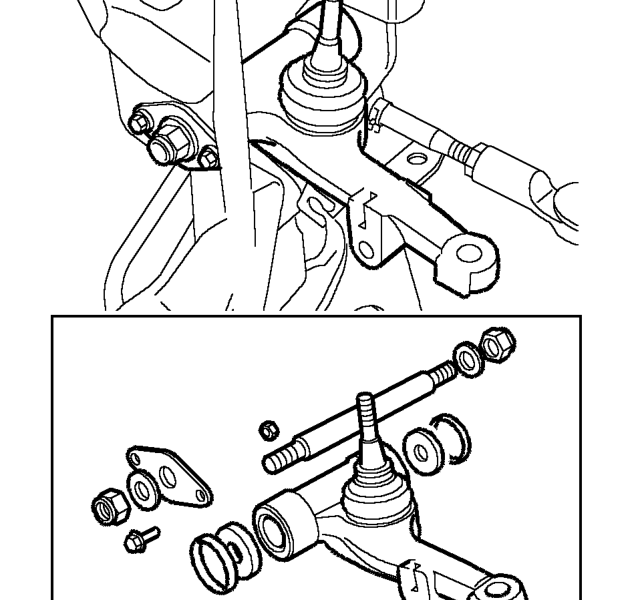

  1. Remove large nuts either end of top arm pivot shaft.
  2. Remove 2 bolts securing pivot shaft retaining plate.
  3. Remove pivot shaft from subframe.
  4. Remove top arm from subframe, collect thrust washers and sealing rings.
Remove top arm from subframe, collect thrust washers and sealing rings.

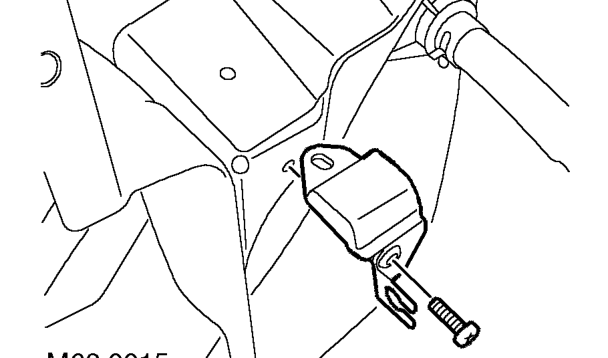

  1. Remove screw securing bump stop to subframe and remove bump stop.
Remove screw securing bump stop to subframe and remove bump stop.

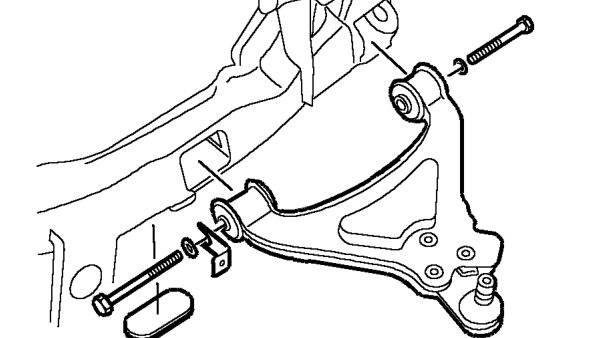

  1. Remove front bolt securing lower arm to subframe.
  2. Remove rubber grommet from subframe.
  3. Remove rear bolt and spacer securing lower arm to subframe.
  4. Remove lower arm.
  5. Repeat above for opposite side of suspension.
