MG MGF Factory Workshop Manual (1995-2000)14 · Suspension
14 · Steering & suspension

Subframe - front (page 3 of 6)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
SuspensionSubframe - front · page 3 of 6
  1. All models: Position suitable table beneath front subframe.
  2. Lower vehicle on ramp until subframe makes contact with table.
Lower vehicle on ramp until subframe makes contact with table.

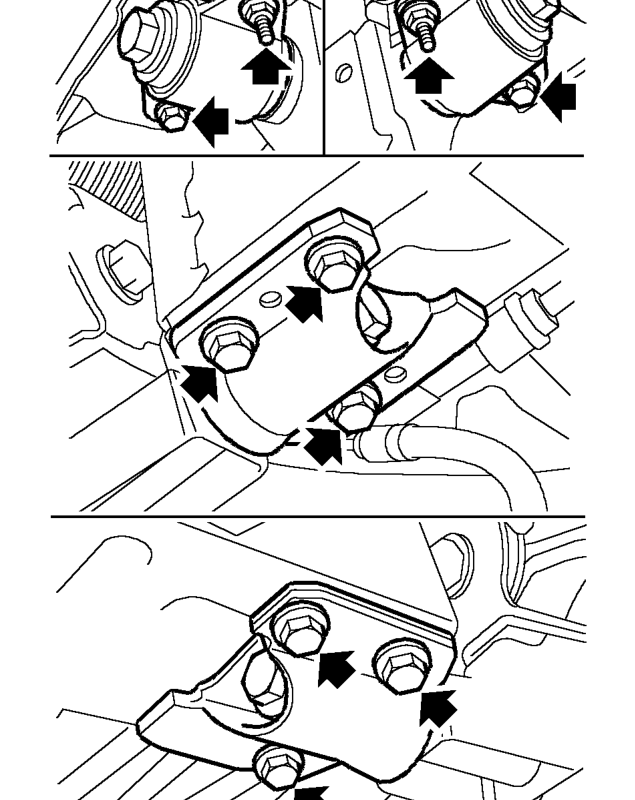

  1. Remove 8 bolts and 2 nuts and bolts securing subframe to body.
  2. Slowly raise vehicle away from subframe.
Slowly raise vehicle away from subframe.

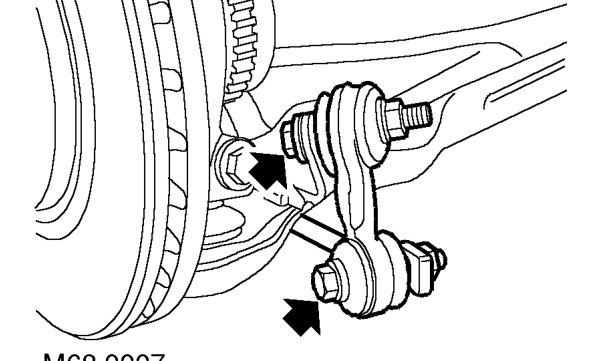

  1. Remove nuts and bolts securing anti-roll bar links to anti-roll bar.
Remove nuts and bolts securing anti-roll bar links to anti-roll bar.

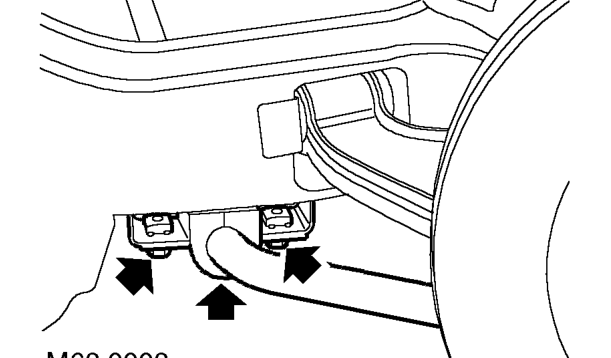

  1. Remove 4 bolts securing anti-roll bar to subframe and remove anti-roll bar, collect anti-roll bar clamps and rubbers.
