Rear subframe - rear mounting (page 2 of 2)

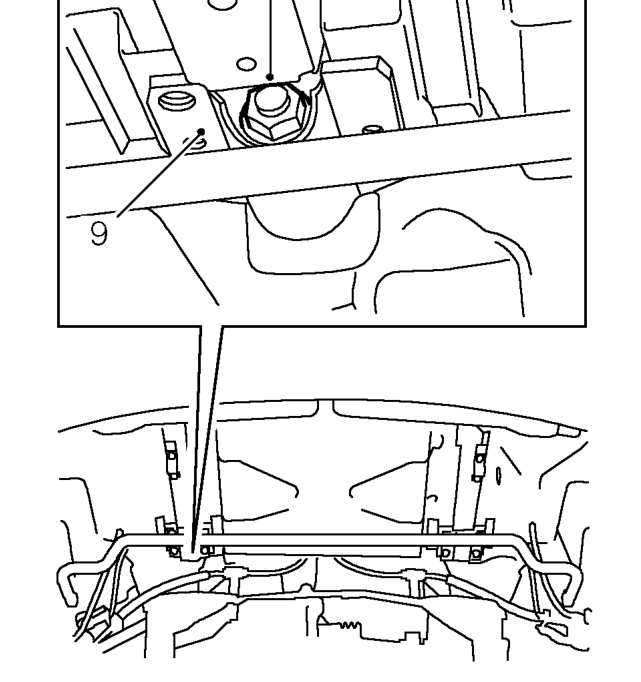

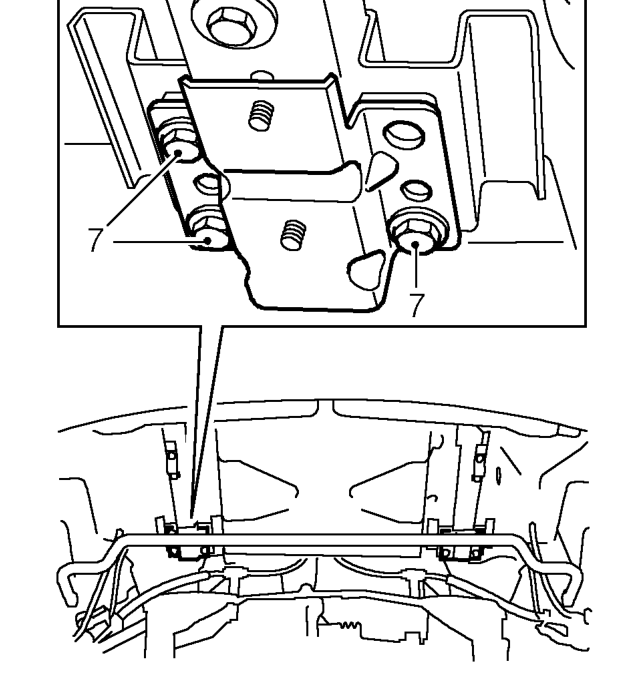

7. Remove 3 bolts securing rear subframe mounting to body and collect anti-roll bar bracket.

8. Remove nut from centre bolt.
9. Carefully lower subframe on trolley jack and remove rear subframe mounting and washers.

Refit

1. Fit mounting and washers to subframe and centre bolt, and loosely fit centre nut.
2. Fit and tighten 1 bolt either side of rear subframe mounting to hold mounting in position. DO NOT fit anti-roll bar bracket.
3. Tighten centre bolt to 100 Nm.
4. Remove bolts holding rear mounting in position.
5. Fit rubber bush and bracket to anti-roll bar and tighten nuts to 22 Nm.
6. Fit silencer heat shield. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
7. Lower vehicle.
