14 · Steering & suspension

Front lower arm (page 2 of 3)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
SuspensionFront lower arm · page 2 of 3
Diagram

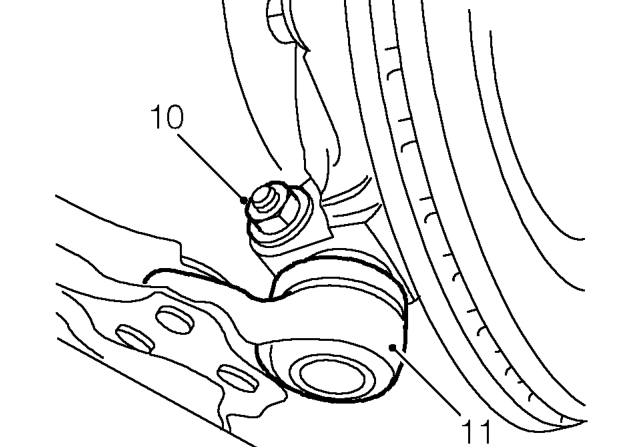

  1. Remove nut and bolt securing ball joint to lower arm.
  2. Release ball joint from hub.
Release ball joint from hub.

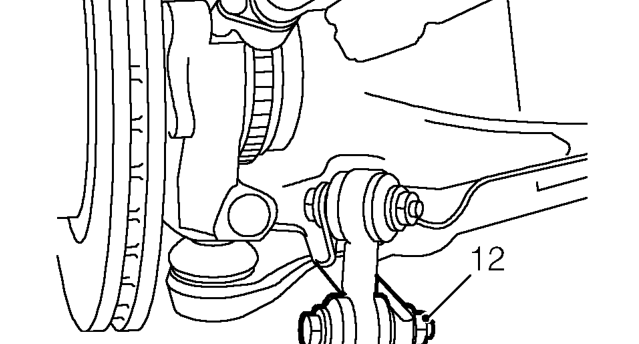

  1. Remove nut and bolt securing anti-roll bar link to lower arm.
  2. Support rear of front subframe on a jack.
Support rear of front subframe on a jack.

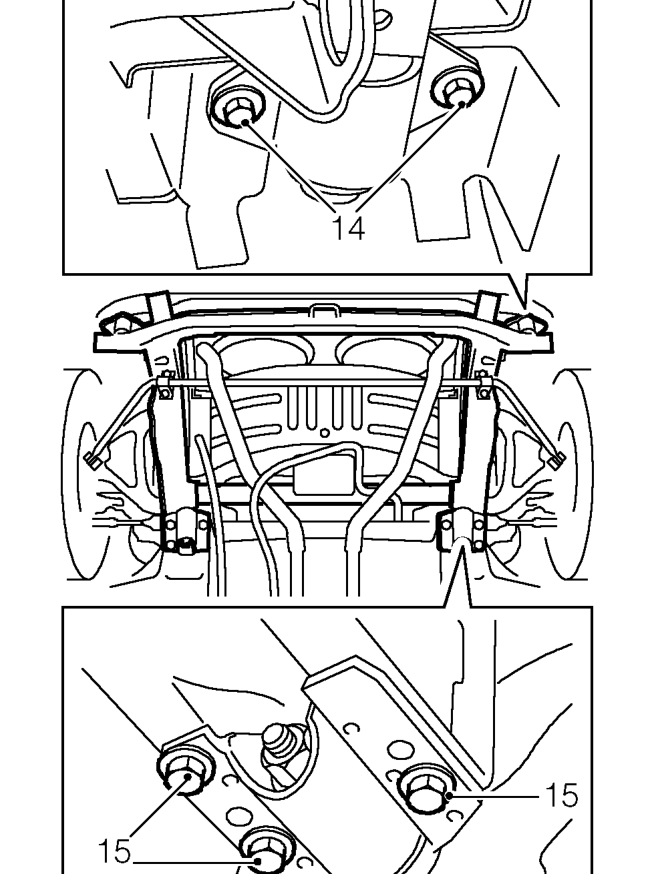

  1. Slacken 4 nuts and bolts securing front subframe mountings to front panel.
  2. Remove 6 bolts securing front subframe rear mountings to body.
  3. Lower subframe on jack to gain access to lower suspension arm rear retaining bolt.
