Engine management system - MEMSEngine management relay module

ENGINE MANAGEMENT RELAY MODULE

Service repair no - 18.30.06

Remove

  1. Remove engine compartment access panel. See BODY, Exterior fittings.

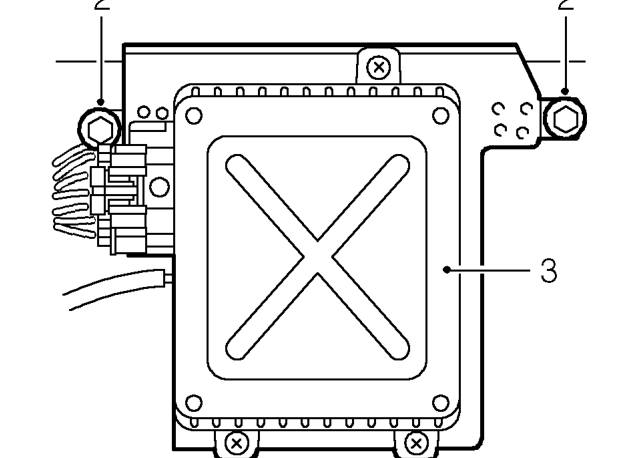

Engine management relay module – Remove engine compartment access panel. See BODY, Exterior fittings.

NOTE: MPi MEMS 1.9 ECM shown

  1. Remove 2 bolts securing ECM mounting bracket.
  2. Move bracket aside and release engine management relay module.

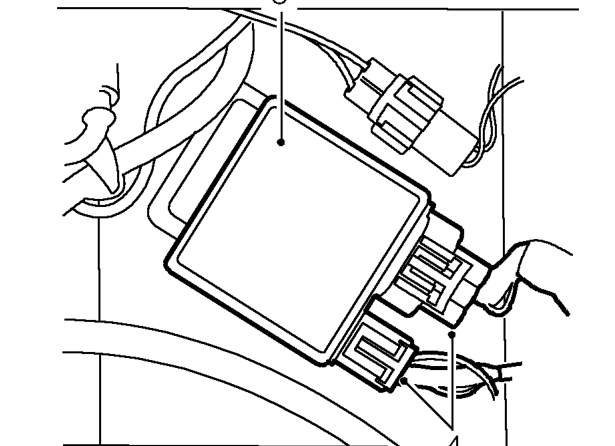

Engine management relay module – Move bracket aside and release engine management relay module.
  1. Disconnect 2 multiplugs from relay module.
  2. Remove relay module.

Refit

  1. Connect multiplugs to relay module.
  2. Secure relay module onto ECM mounting bracket.
  3. Fit ECM mounting bracket and tighten bolts.
  4. Fit engine compartment access panel. See BODY, Exterior fittings.
