MG MGF Factory Workshop Manual (1995-2000)06 · Engine management system - MEMS
06 · Engine

Element - air cleaner - MGF trophy

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs › Element - air cleaner - MGF trophy
Engine management system - MEMSElement - air cleaner - MGF trophy

Refit

  1. Fit NEW air cleaner element.
  2. Position cover to air cleaner and secure with clips.
  3. Connect air intake hose to throttle body and secure with clip.
  4. Fit engine compartment access panel. See BODY, Exterior fittings.

ELEMENT - AIR CLEANER - MGF TROPHY

Service repair no - 19.10.10

Remove

  1. Disconnect battery earth lead.
  2. Remove engine cover. See ENGINE, Repairs.
  3. Remove engine compartment access cover. See BODY, Exterior fittings.

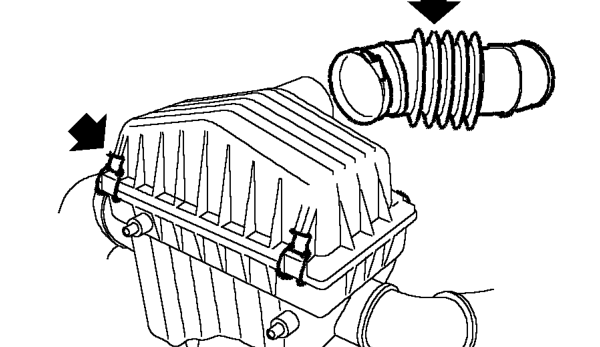

Element - air cleaner - mgf trophy – Remove engine compartment access cover. See BODY, Exterior fittings.
  1. Release clip and disconnect air intake hose from throttle body.
  2. Loosen clip securing air intake hose to air cleaner and remove hose.
  3. Release 4 clips securing air cleaner cover.

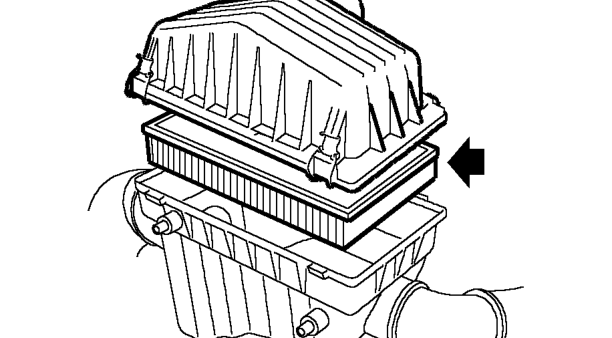

Element - air cleaner - mgf trophy – Release 4 clips securing air cleaner cover.
  1. Remove air cleaner cover and remove element.
