MG MGF Factory Workshop Manual (1995-2000)06 · Engine management system - MEMS
06 · Engine

Filler neck (page 2 of 2)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
Engine management system - MEMSFiller neck · page 2 of 2
Diagram

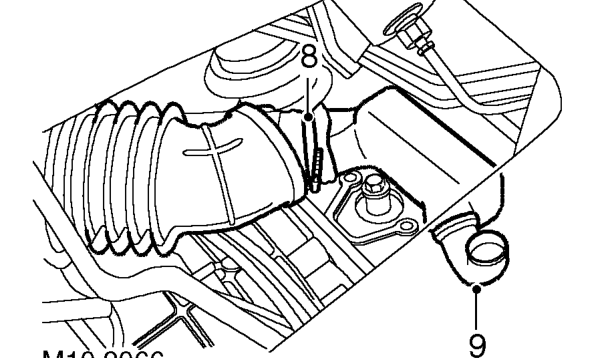

  1. Loosen clip securing air intake hose to resonator and release hose from resonator.
  2. Remove air intake elbow from resonator.
Remove air intake elbow from resonator.

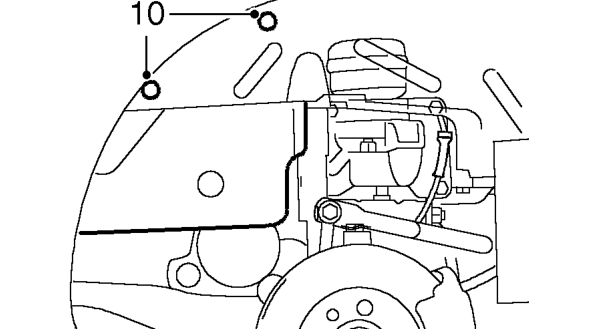

  1. Remove 2 bolts securing air intake resonator to body.
Remove 2 bolts securing air intake resonator to body.

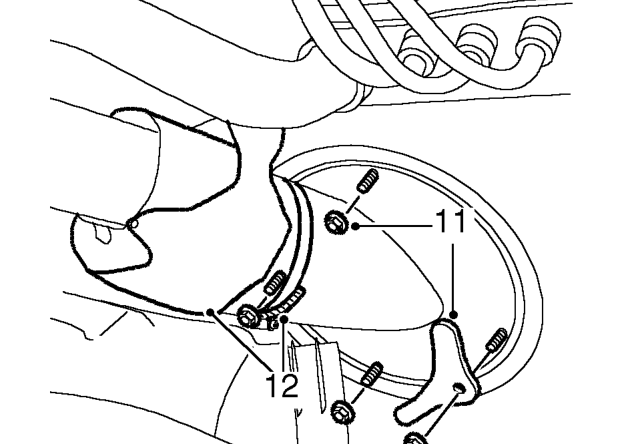

  1. Remove 4 nuts securing filler neck gaiter and collect gaiter clamp.
  2. Slide gaiter up filler neck, loosen clip and release hose from filler neck.
Slide gaiter up filler neck, loosen clip and release hose from filler neck.

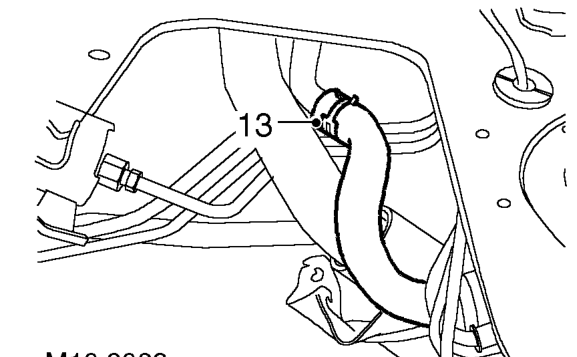

  1. Release clip securing breather hose to filler neck and disconnect hose.
  2. Remove fuel filler cap.
