MG MGF Factory Workshop Manual (1995-2000)06 · Engine management system - MEMS
06 · Engine

Fuel tank (page 2 of 3)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
Engine management system - MEMSFuel tank · page 2 of 3

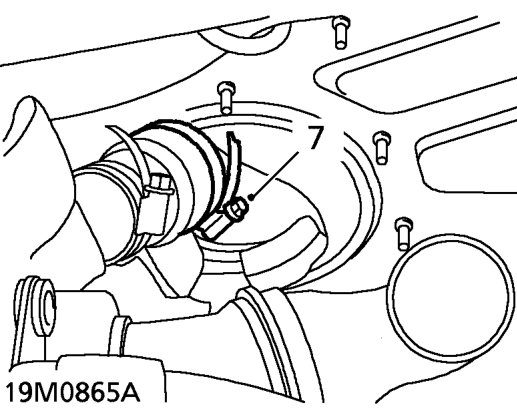

Diagram
  1. Release clip securing filler hose to fuel tank and position hose aside.
  2. Remove front console. See BODY, Interior trim components.
  3. Lower hood.

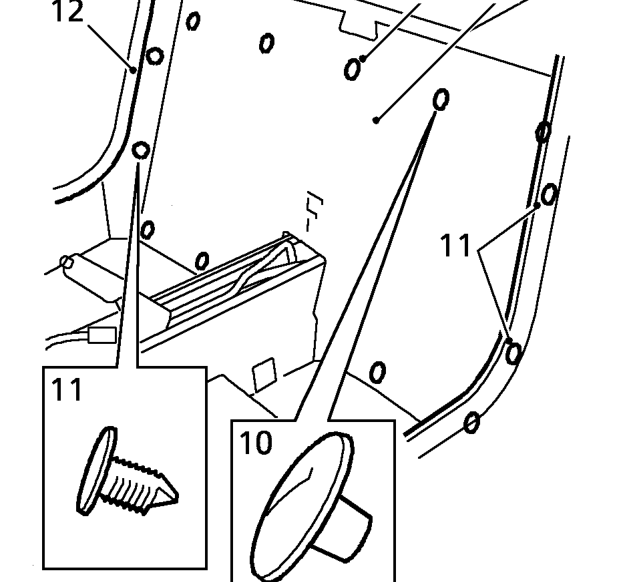

Lower hood.
  1. Remove 9 retaining studs securing carpet to rear bulkhead.
  2. Remove 4 clips securing carpet to ’B’ post.
  3. Release carpet from door seals and velcro strips.
  4. Remove carpet.
