Fuel injectors - VVC (page 2 of 2)

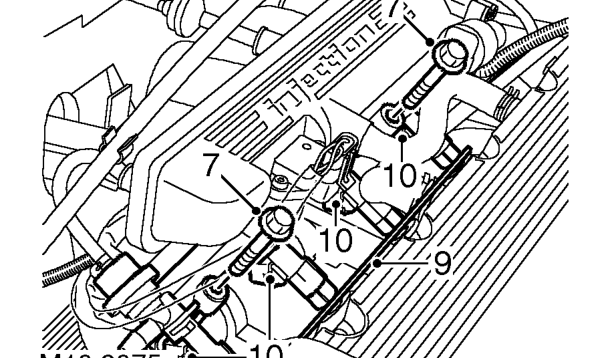

7. Remove 2 bolts securing fuel rail to inlet manifold.
8. Release fuel rail and injectors from inlet manifold.
9. Release and remove injector spacer.
10. Disconnect multiplugs from injectors.

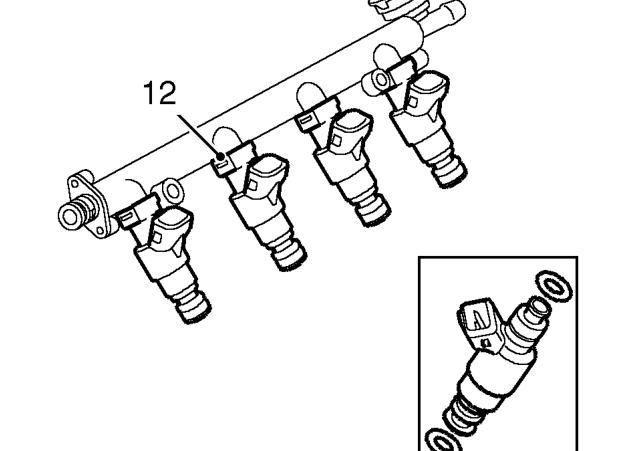

11. Remove the fuel rail complete with injectors.

12. Release spring clips securing injectors to fuel rail and remove fuel injectors.
13. Remove and discard 2 ’O’ rings from each injector.
14. Fit protective caps to each end of injectors.

Refit

1. Remove protective caps from each injector.
2. Clean injectors and recesses in fuel rail and inlet manifold.
3. Lubricate new ’O’ rings with silicone grease and fit to each end of injectors.
4. Fit injectors to fuel rail.
5. Secure injectors to fuel rail with spring clips.
6. Position fuel rail assembly and connect injector multiplugs.
7. Fit injector spacer.
8. Push each injector into inlet manifold.
9. Fit bolts securing fuel rail to inlet manifold and tighten to 10 Nm.
10. Using a new ’O’ ring, connect fuel feed to fuel rail, fit bolts and tighten to 8 Nm.
11. Connect vacuum pipe to fuel pressure regulator and secure with clip.
12. Fit engine cover. See ENGINE, Repairs.
13. Connect battery earth lead.
