Throttle cable (page 2 of 2)

Make

MG

Model

MGF Factory Workshop Manual

Year

1995–2000

Section

Repairs

Engine management system - MEMSThrottle cable · page 2 of 2

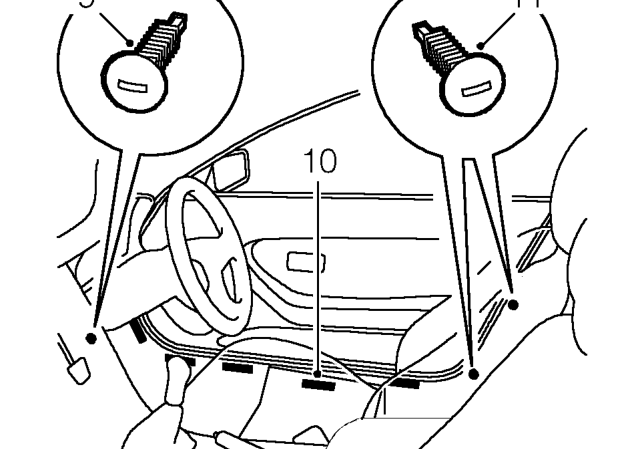

9. Remove stud securing carpet to inner wheel arch.
10. Release carpet from door seal and 5 velcro strips.
11. Remove 2 studs securing carpet to ’B’ post and release carpet from door seal and velcro to reveal cables.

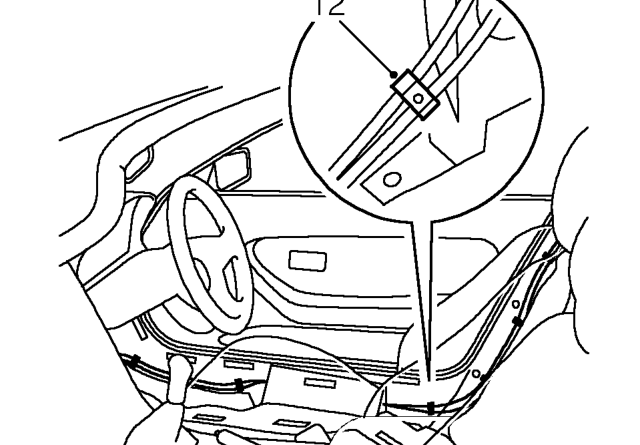

12. Release cable from 3 sill clips and 3 ’B’ post clips.
13. Release cable from floorpan crossmember.

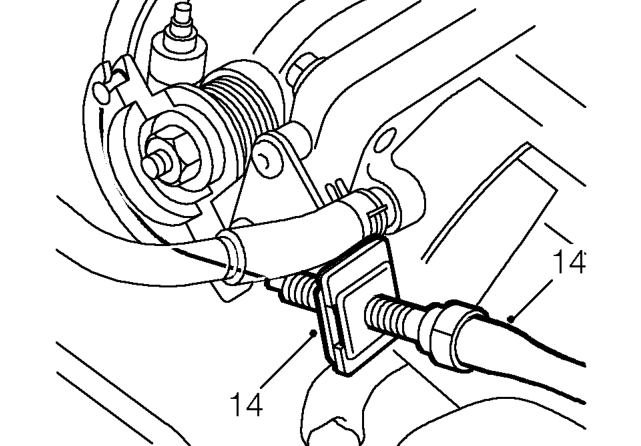

14. Release throttle cable from throttle body abutment and cam and position aside.

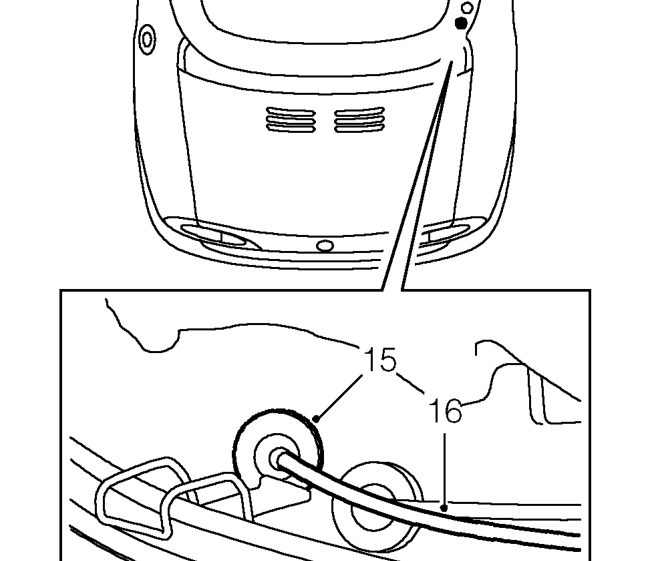

15. Position hoodwell insulation aside and release cable grommet from hoodwell.
16. Remove throttle cable.
