ANTI-ROLL BAR BUSHES

Service repair no - 60.10.05

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

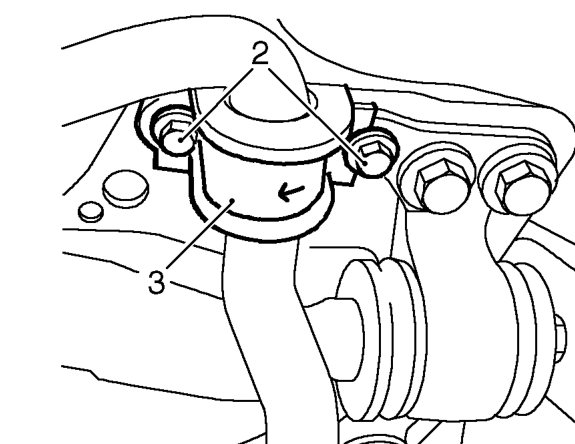

Anti-roll bar bushes – Raise front of vehicle.
  1. Remove 2 bolts securing anti-roll bar bush clamp to front beam.
  2. Remove clamp and bush.

Refit

  1. Clean bush mating surfaces.
  2. Fit bush to anti-roll bar, ensuring split faces forwards.

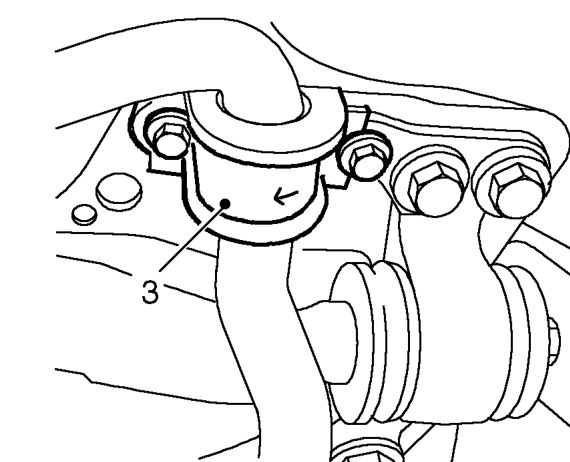

Anti-roll bar bushes – Fit bush to anti-roll bar, ensuring split faces forwards.
  1. Fit clamp to bush, ensuring ARROW faces forwards.
  2. Fit and tighten bolts to 22 Nm.
  3. Repeat remove and refit operations on second bush.
  4. Remove stand(s) and lower vehicle.
