FRONT LOWER BALL JOINT

Service repair no - 60.15.03

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
Front lower ball joint – Remove road wheel(s).

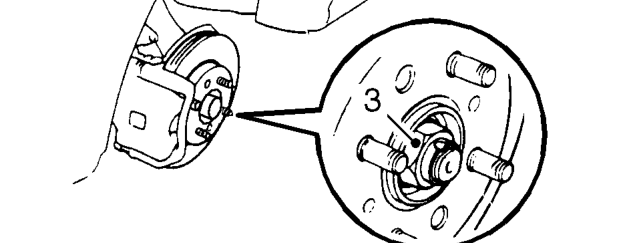

  1. Remove drive shaft nut.
Front lower ball joint – Remove drive shaft nut.

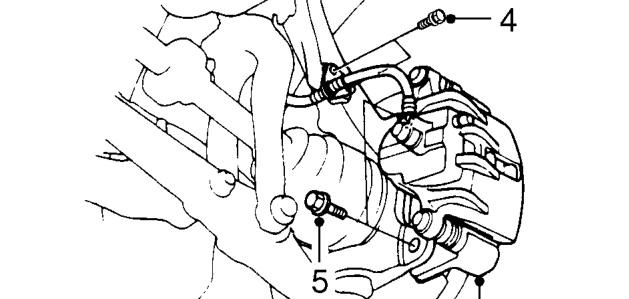

  1. Remove 2 bolts securing brake hose bracket to swivel hub.
  2. Remove 2 bolts securing caliper.
  3. Release caliper and tie aside.

CAUTION: Do not allow caliper to hang on brake hose.

Front lower ball joint – Release caliper and tie aside.

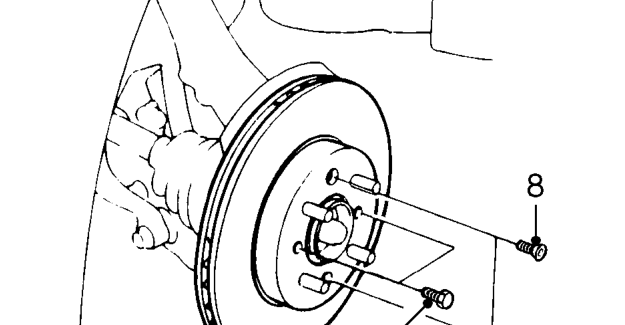

  1. Mark brake disc to hub relationship.
  2. Remove 2 screws securing disc and remove disc. Release disc using jacking bolts if necessary.
Front lower ball joint – Remove 2 screws securing disc and remove disc. Release disc using jacking bolts if necessa

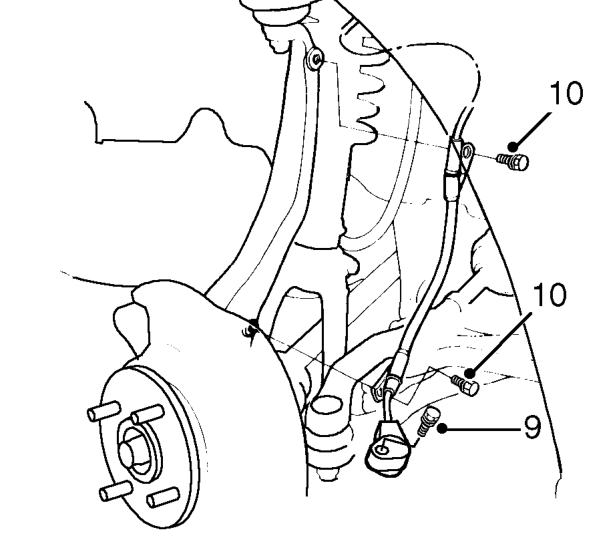

  1. Remove TX30 Torx screw securing ABS sensor to adaptor.
  2. Remove 2 bolts securing sensor lead brackets to swivel hub and release lead.
