Rear upper arm inner bush

Make

Rover

Model

400 Workshop Manual

Year

1995–2000

Section

Repairs › Rear upper arm inner bush

SuspensionRear upper arm inner bush

Refit

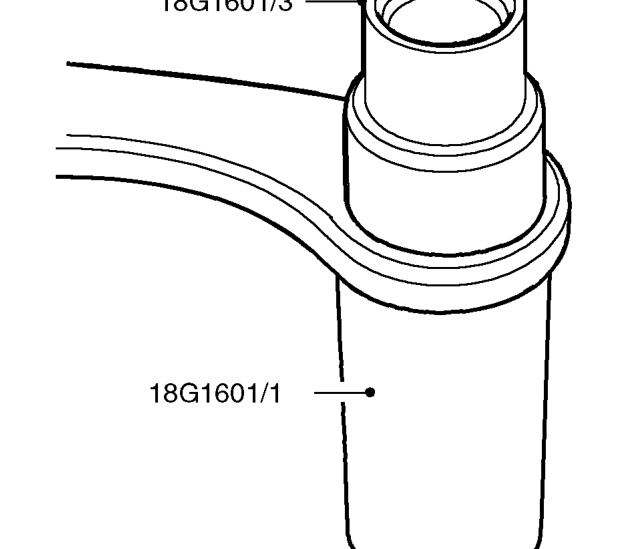

1. Turn arm over and support on 18G 1601/1 .
2. Position new bush and locate tool 18G 1601/3 over bush. Press bush into arm until tool contacts arm.
3. Fit upper arm. See this section.

REAR UPPER ARM INNER BUSH

Service repair no - 64.35.62

Remove

1. Remove upper arm. See this section.

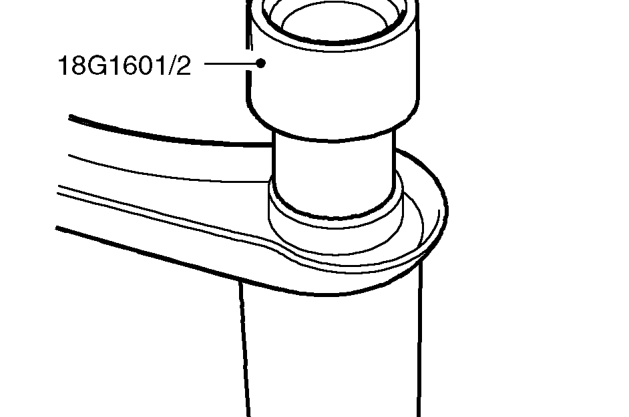

2. Position arm, flange face UP on support tool 18G 1601/1 .
3. Position tool 18G 1601/2 on bush and press out bush.

23 Steering & suspension
