REAR DAMPER

Service repair no - 64.30.02

Remove

  1. Remove rear seat squab. See BODY, Seats and seat belts.
Rear damper – Remove rear seat squab. See BODY, Seats and seat belts.

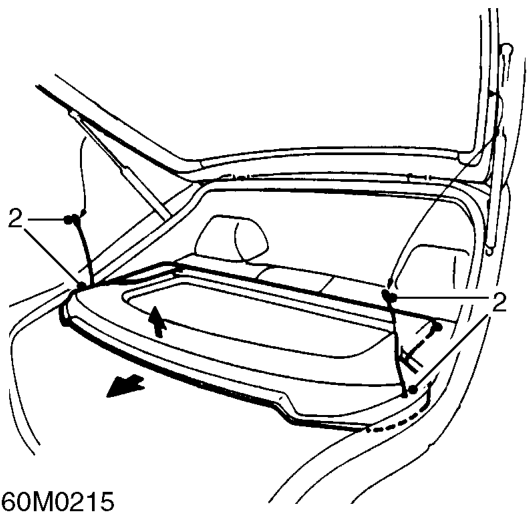

  1. Release parcel tray support straps and remove parcel tray.
Rear damper – Release parcel tray support straps and remove parcel tray.

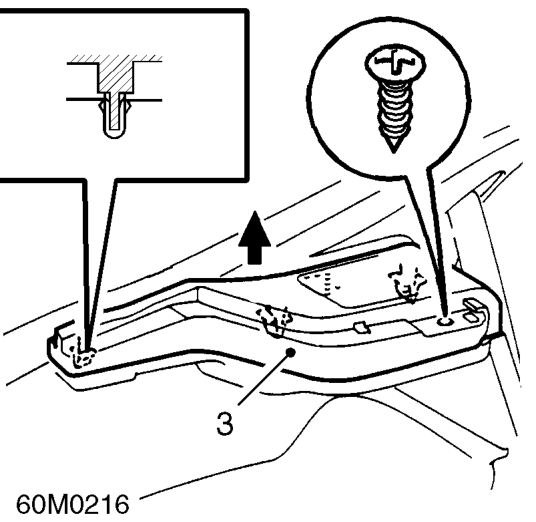

  1. Remove screw and release 3 clips securing parcel tray support panel, remove support panel.

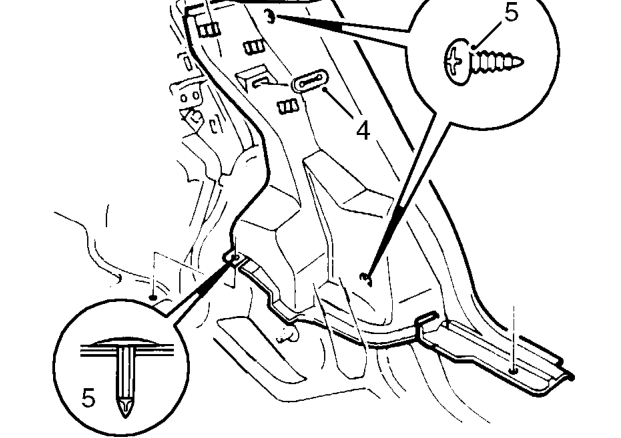

Rear damper – Remove screw and release 3 clips securing parcel tray support panel, remove support panel.
  1. Remove rear squab catch striker rubber.
  2. Remove 2 screws and trim fastener securing ’D’ post lower finisher.
  3. Release 3 finisher retaining clips, disengage from carpet retainer and position finisher aside.

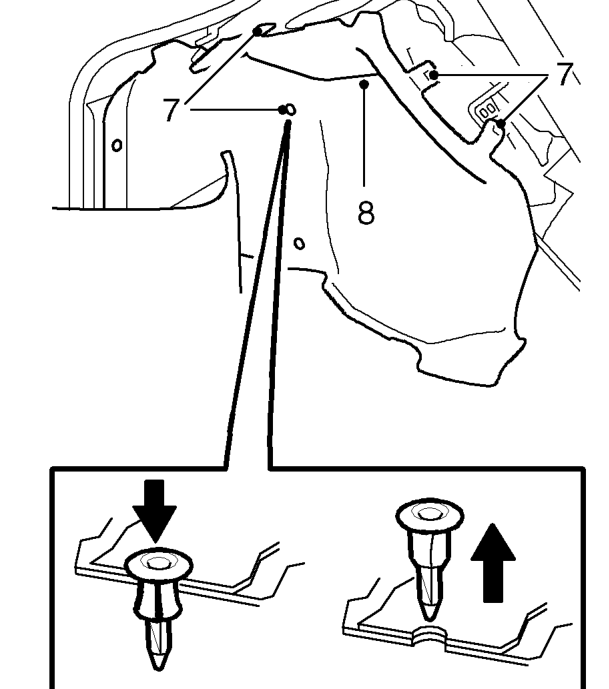

Rear damper – Release 3 finisher retaining clips, disengage from carpet retainer and position finisher a
  1. Fold boot floor carpet aside, depress centre pin and remove side carpet retaining stud and release side carpet from 3 retaining tags on body.
  2. Pull side carpet from fitted position for access.
