Anti-roll bar link

ANTI-ROLL BAR LINK

Service repair no - 60.10.02

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

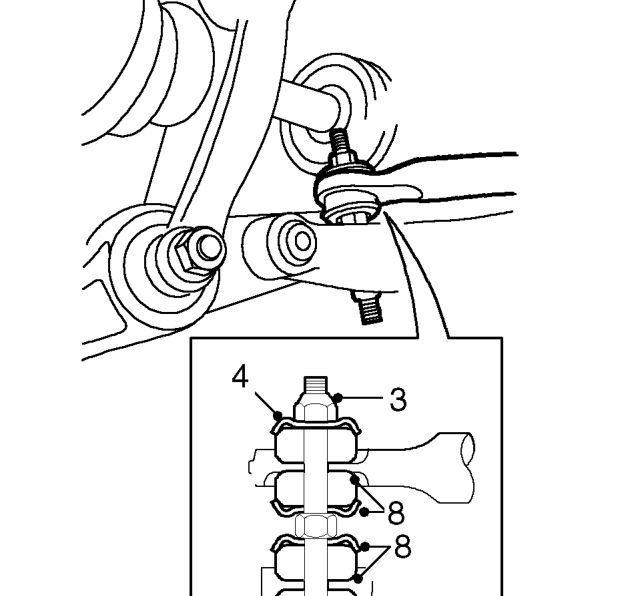

2. Remove road wheel(s).

3. Hold link against rotation and remove flange nut from top of link.
4. Remove cup washer and bush.
5. Hold link against rotation and remove flange nut from bottom of link.
6. Remove cup washer and bush.
7. Lever anti-roll bar upwards and remove link assembly.
8. Remove bush and cup washer from each side of link.

Refit

1. Smear inside of cup washers with rubber grease.
2. Fit cup washer and bush to each side of link, ensure cap and flange face outwards.
3. Lever anti-roll bar upwards and fit link to lower arm and anti-roll bar.
4. Fit bush and cup washer, ensure bush flange locates in lower arm.
5. Fit bottom flange nut, do not tighten.
6. Fit bush and cup washer, ensure bush flange locates in anti-roll bar.
7. Fit top flange nut, tighten both nuts to 22 Nm.
8. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
9. Remove stand(s) and lower vehicle.
