SuspensionFront lower arm assembly

FRONT LOWER ARM ASSEMBLY

Service repair no - 60.35.02

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
Front lower arm assembly – Remove road wheel(s).

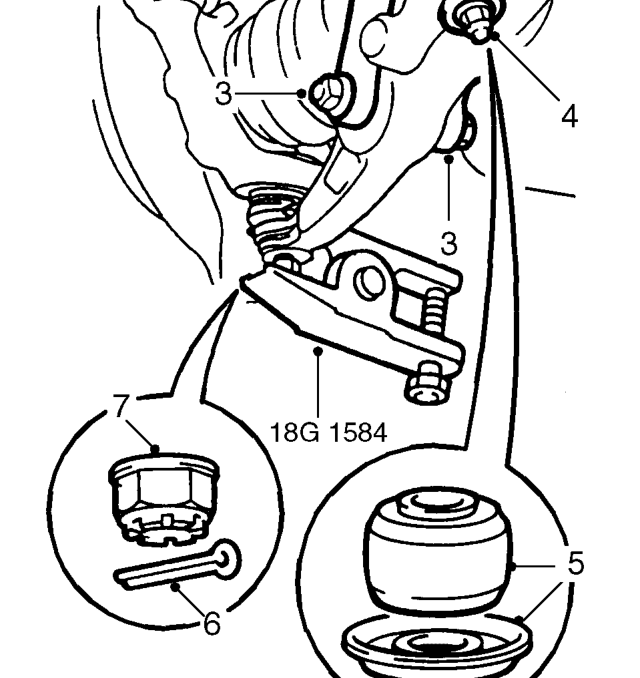

  1. Remove nut and bolt securing damper fork to lower arm. Discard nut.
  2. Remove nut securing anti-roll bar link to lower arm.
  3. Remove cup washer and bush.
  4. Remove split pin from lower ball joint nut. Discard split pin.
  5. Remove nut from lower ball joint.
  6. Break taper joint using tool 18G 1584 .
Front lower arm assembly – Break taper joint using tool 18G 1584 .

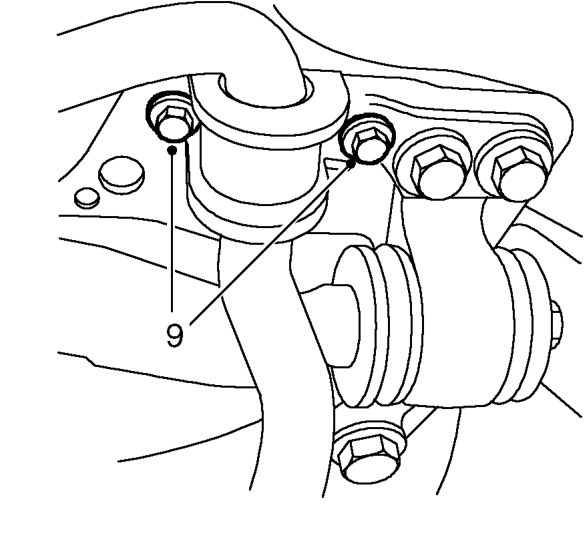

  1. Remove 2 bolts securing anti-roll bar bracket to front beam.
Front lower arm assembly – Remove 2 bolts securing anti-roll bar bracket to front beam.

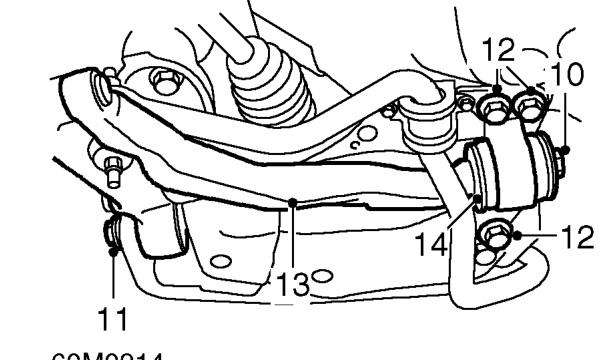

  1. Remove nut and washer from lower arm rear pivot. Discard nut.
  2. Remove lower arm front pivot bolt.
  3. Slacken rear pivot bush bracket bolts sufficiently to allow front pivot bush to be released, and clear front beam.
  4. Release and remove lower arm assembly.
  5. Remove washer from rear pivot.

WARNING: The lower arm is made-up from 2 parts bolted together, these bolts MUST NOT be tampered with.
