Rear hub bearing - disc brake

Refit

1. Clean hub and stub axle.
2. Lubricate seal running surface with grease.
3. Fit hub assembly.
4. Fit washer and new nut. Tighten nut to 181 Nm.
5. Stake nut to stub axle and fit hub nut cap.
6. Clean brake drum and hub mating faces.
7. Fit brake drum and tighten screws to 7 Nm.
8. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
9. Remove stand(s) and lower vehicle.
10. Apply foot brake several times and then check handbrake operation.

REAR HUB BEARING - DISC BRAKE

Service repair no - 64.15.14

Remove

1. Raise rear of vehicle.

WARNING: Support on safety stands.

2. Remove road wheel(s).

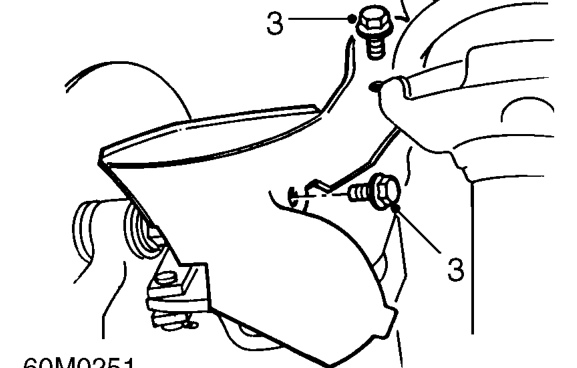

3. Remove 2 bolts securing caliper shield and remove shield.

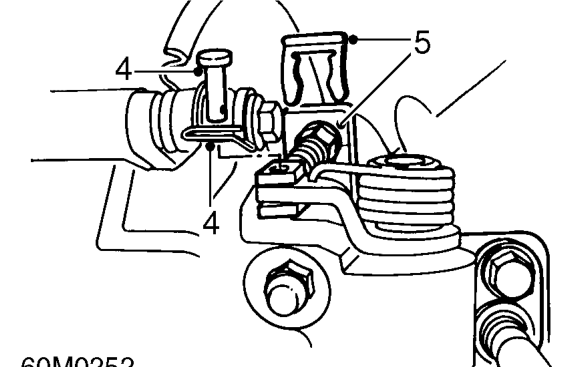

4. Remove spring clip and remove clevis pin from handbrake cable. Discard spring clip.
5. Remove clip retaining handbrake cable and release cable from abutment bracket.
