Rear hub bearing - disc brake (page 2 of 2)

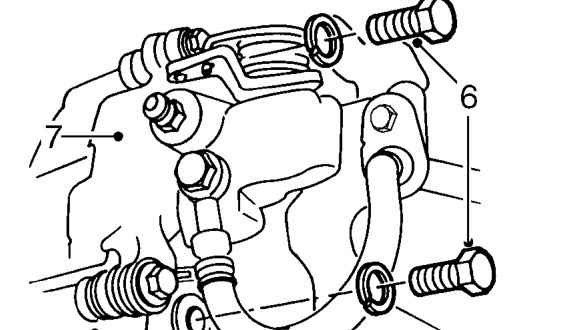

6. Remove 2 bolts securing caliper.
7. Release caliper and tie aside.

CAUTION: Do not allow caliper to hang on brake hose.

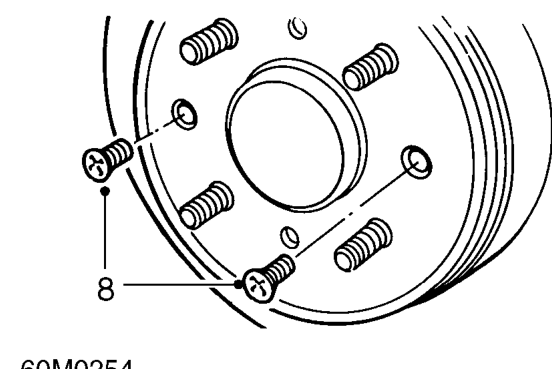

8. Remove 2 screws securing brake disc and remove disc.

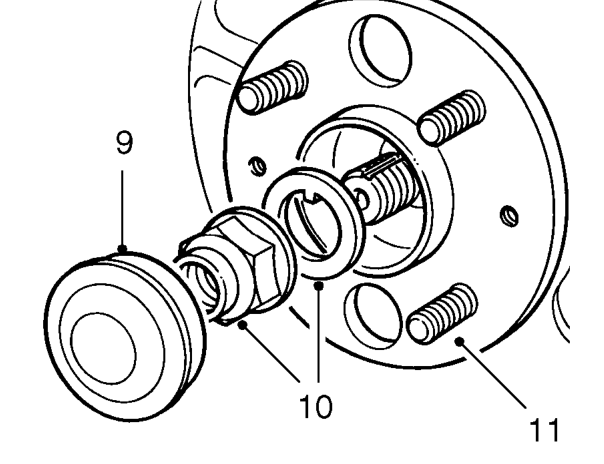

9. Remove hub nut cap.
10. Knock back staking and remove hub nut and washer. Discard nut.
11. Remove hub assembly.

Refit

1. Clean hub and stub axle.
2. Lubricate seal running surface with grease. See INFORMATION, Capacities, fluids and lubricants.
3. Fit hub assembly.
4. Fit washer and new nut. Tighten nut to 181 Nm.
5. Stake nut to the stub axle and fit hub nut cap.
6. Clean disc and hub mating faces.
7. Fit disc to hub, fit screws and tighten to 10 Nm.
8. Fit caliper and tighten bolts to 108 Nm.
9. Fit handbrake cable to bracket and fit new clip.
10. Fit handbrake cable clevis pin and secure with spring clip.
11. Fit caliper shield, fit screws and tighten to 10 Nm.
12. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
13. Remove stand(s) and lower vehicle.
14. Apply foot brake several times and then check handbrake operation.
