SuspensionRear spring

REAR SPRING

Service repair no - 64.20.01

  1. This operation is identical to rear damper. See this section.

REAR HUB BEARING - DRUM BRAKE WITHOUT ABS

Service repair no - 64.15.14

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).

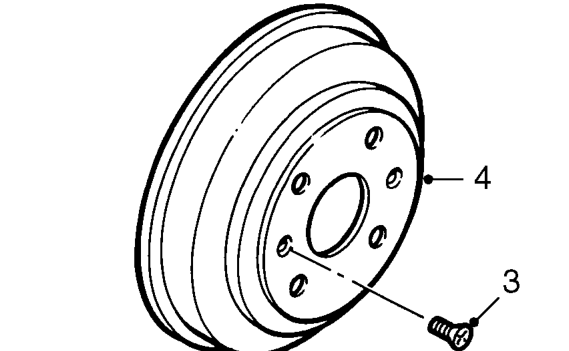

Rear hub bearing - drum brake without abs – Remove road wheel(s).
  1. Remove 2 screws securing brake drum to hub.
  2. Remove brake drum.

NOTE: If the drum is held by the brake shoes, release the self-adjust mechanism. See BRAKES, Repairs.

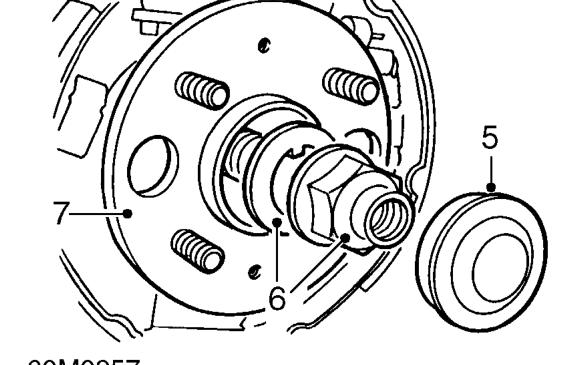

Rear hub bearing - drum brake without abs – Remove brake drum.
  1. Remove hub nut cap.
  2. Knock back staking and remove hub nut and washer. Discard nut.
  3. Remove hub assembly.
