Handbrake switch

HANDBRAKE SWITCH

Service repair no - 70.35.40

Remove

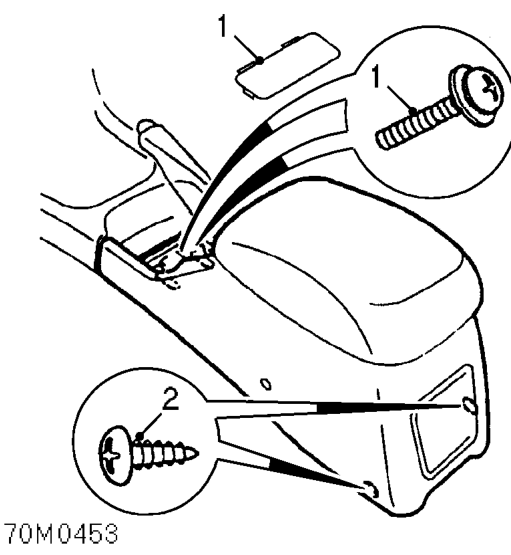

1. Remove access lid and 2 screws securing front of rear console.
2. Move front seats forward and remove 2 screws securing rear of rear console.

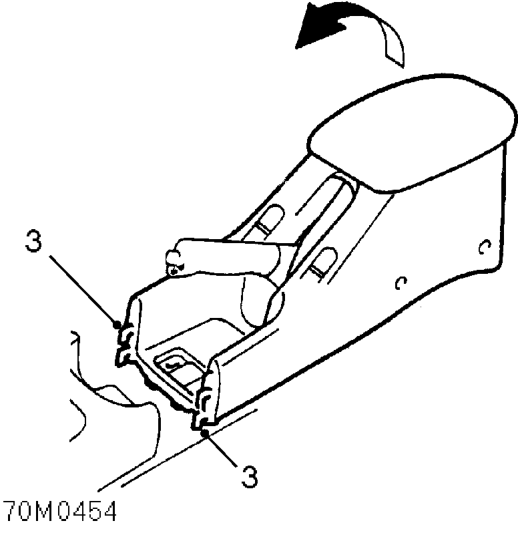

3. Carefully lift front of rear console and disengage 4 hooks from the front console.

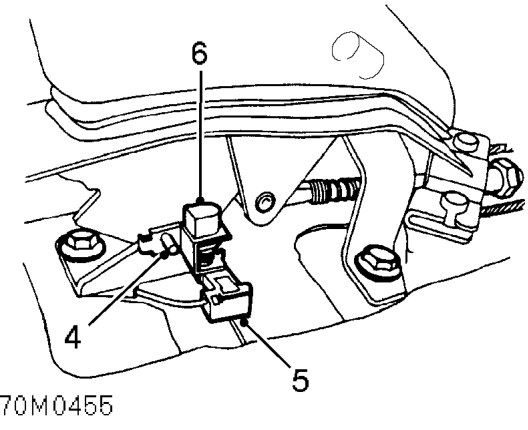

4. Lift rear of console for access and remove screw securing switch to handbrake.
5. Disconnect Lucar connector from switch.
6. Remove handbrake switch.

Refit

1. Connect Lucar to handbrake switch
2. Position switch and secure to handbrake with screw.
3. Carefully align and engage rear console hooks into the front console.
4. Fit screws to rear of console.
5. Fit screws and secure front of console.
6. Fit access lid.
