ABS hydraulic modulator - ’d’ series up to 97.5my

ABS HYDRAULIC MODULATOR - ’D’ SERIES UP TO 97.5MY

Service repair no - 70.25.12

Remove

1. Disconnect battery earth lead.

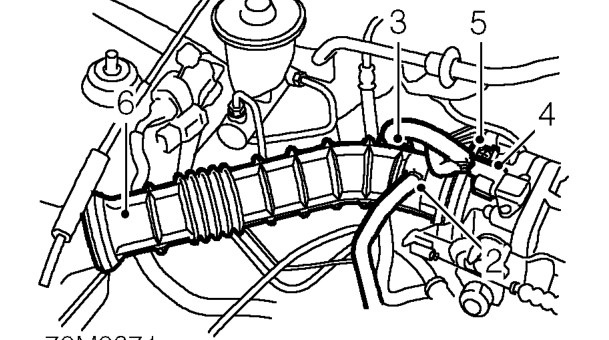

2. Release clip and disconnect breather pipe from air intake hose.
3. Release evaporative emission charcoal canister hose from air intake hose clip.
4. Disconnect multiplug from MAP sensor and release harness from air intake hose clip.
5. Loosen clip and disconnect air intake hose from throttle housing.
6. Remove air intake hose from air cleaner.

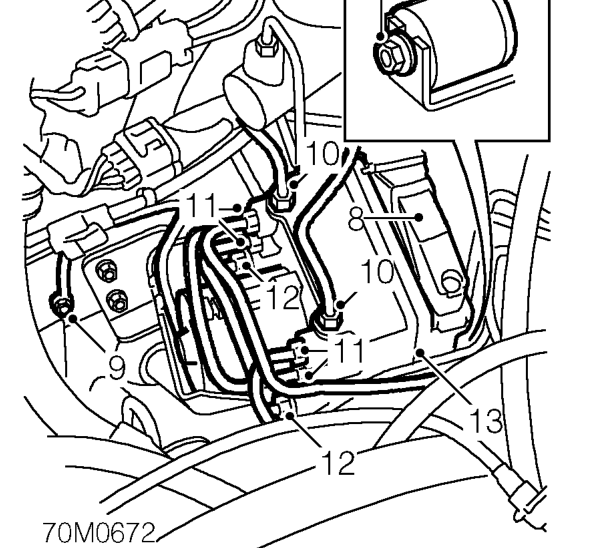

7. Position cloth under modulator to absorb fluid spillage.

CAUTION: Do not allow brake fluid to contact paint finished surfaces as paint may be damaged. If spilled, remove fluid and clean area with clean warm water.

8. Raise clip, lift front of multiplug and disengage from modulator ECU.
9. Remove bolt securing modulator earth lead to body.
10. Disconnect 2 inlet brake pipe unions from top of modulator.

CAUTION: Plug the connections.

11. Disconnect 4 outlet brake pipe unions from modulator.

CAUTION: Plug the connections.

12. Slacken 3 nuts securing modulator to mounting bracket.
13. Release modulator from mounting bracket and remove. Do not carry out further dismantling if component is removed for access only.
14. Remove 3 mounting rubbers from modulator.
15. Remove nut securing earth lead to modulator and remove lead.
