ABS front wheel sensor and harness

ABS FRONT WHEEL SENSOR AND HARNESS

Service repair no - 70.25.32

1. Raise front of vehicle, one side.

WARNING: Support on safety stands.

2. Remove road wheel(s).

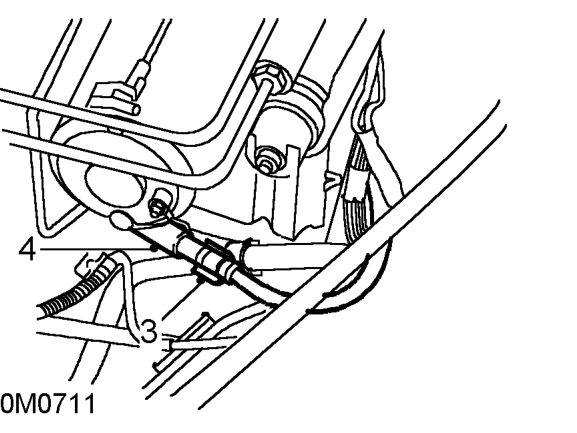

3. Locate sensor harness multiplug under ABS modulator bracket or brake servo and release multiplug from clip.
4. Disconnect sensor harness multiplug.

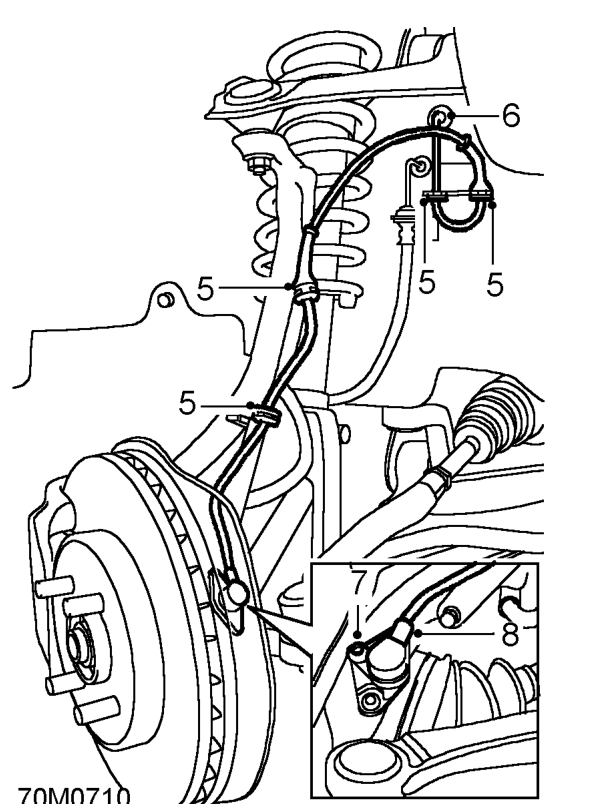

5. Release 4 sensor harness grommets from valance and suspension brackets.
6. Release grommet from valance and pull sensor harness through.
7. Remove TX30 Torx screw securing sensor to hub adaptor.
8. Remove sensor and harness.

Refit

1. Clean mating surfaces of sensor and hub adaptor.
2. Fit sensor to adaptor and tighten screw to 6 Nm.
3. Smear harness grommets with rubber grease and fit grommets into brackets.
4. Pass sensor harness through wing valance and secure grommet.
5. Ensuring ’O’ ring is in place, connect sensor harness multiplug to body harness and secure multiplug in clip.
6. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
7. Remove stand(s) and lower vehicle.
8. To ensure correct operation, the system MUST be tested using TestBook.
