REAR BRAKE CALIPER

Service repair no - 70.55.25

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).

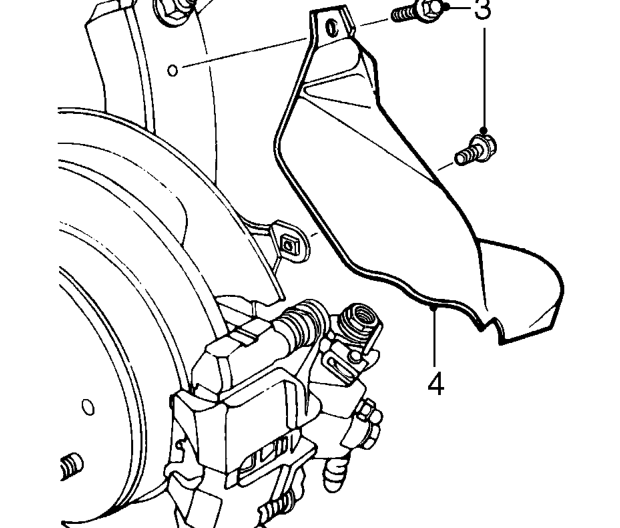

Rear brake caliper – Remove road wheel(s).
  1. Remove 2 bolts securing caliper shield.
  2. Remove shield.

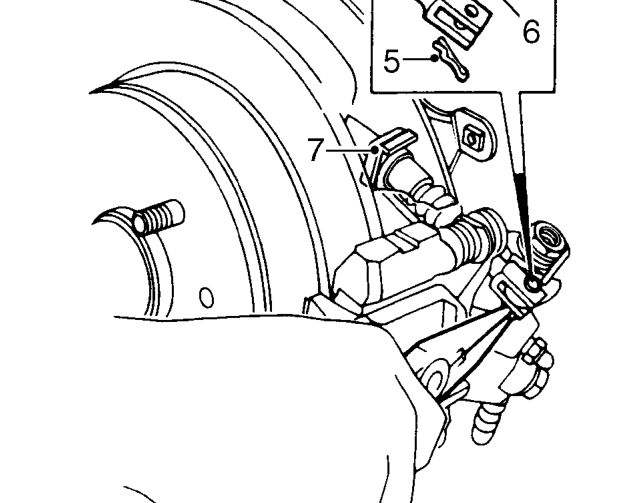

Rear brake caliper – Remove shield.
  1. Remove clip from handbrake cable clevis pin. Discard clip.
  2. Remove clevis pin.
  3. Remove handbrake cable clip and release cable from abutment.
  4. Clamp brake hose to prevent fluid loss.

CAUTION: A brake hose clamp must be used.
