REAR BRAKE DRUM

Service repair no - 70.10.03

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
  2. Release handbrake.
Rear brake drum – Release handbrake.

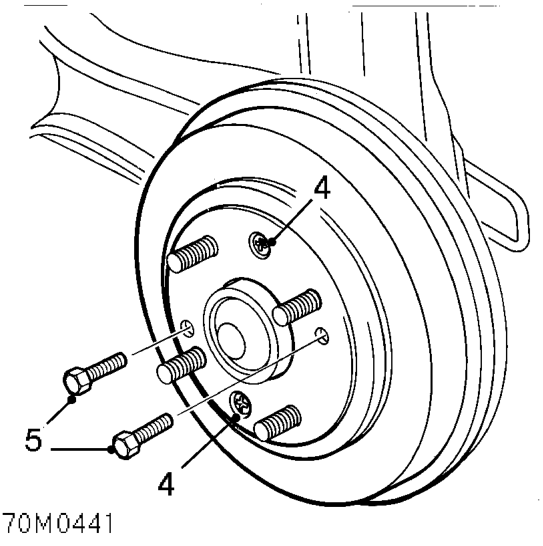

  1. Remove 2 screws securing brake drum.
  2. Screw 2 screws into drum, tighten equally to ease drum from hub.

CAUTION: If drum is held, release the shoes to increase clearance as follows:

Rear brake drum – Screw 2 screws into drum, tighten equally to ease drum from hub.

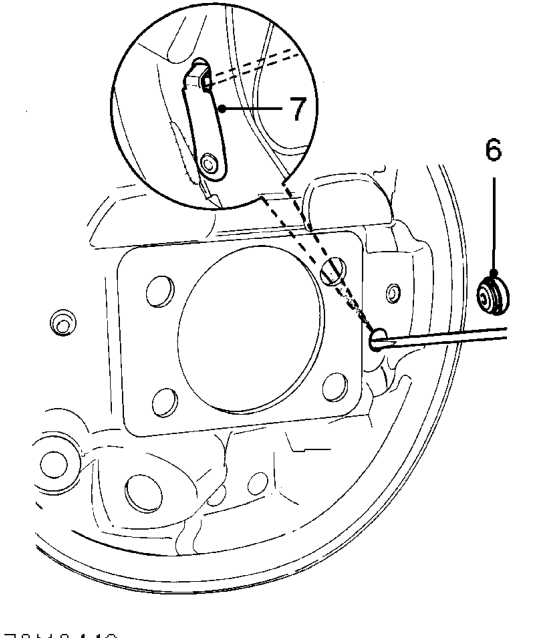

  1. Remove rubber grommet from rear of backplate.
  2. Using a flat screwdriver, disengage handbrake lever stop to increase shoe to drum clearance. If drum is still held, loosen handbrake cable adjustment. See Adjustments.
