ABS hydraulic modulator - up to 97.5my

Refit

1. Engage 2 multiplugs and fit ECU to modulator.
2. Fit mounting spigot to ECU, DO NOT tighten.
3. Fit screws securing ECU to modulator and tighten to 8 Nm.
4. Tighten spigot to 15 Nm.
5. Fit mounting rubber to spigot.
6. Locate ECU and modulator assembly in mounting bracket and tighten nuts to 10 Nm.
7. Connect multiplug to ECU and secure clip.
8. Connect battery earth lead.

ABS HYDRAULIC MODULATOR - UP TO 97.5MY

Service repair no - 70.25.12

Remove

1. Disconnect battery earth lead.

LHD models

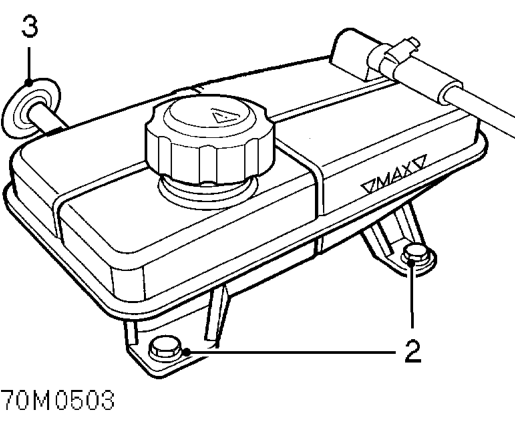

2. Remove 2 bolts securing coolant expansion tank.
3. Disengage expansion tank spigot from grommet and position expansion tank aside.

All models

4. Position cloth under modulator to absorb fluid spillage.

CAUTION: Do not allow brake fluid to contact paint finished surfaces as paint may be damaged. If spilled, remove fluid and clean area with clean warm water.
