Rover 400 Workshop Manual (1995-2000)24 · Brakes
24 · Brakes

All models

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › All models
BrakesAll models

All models

All models

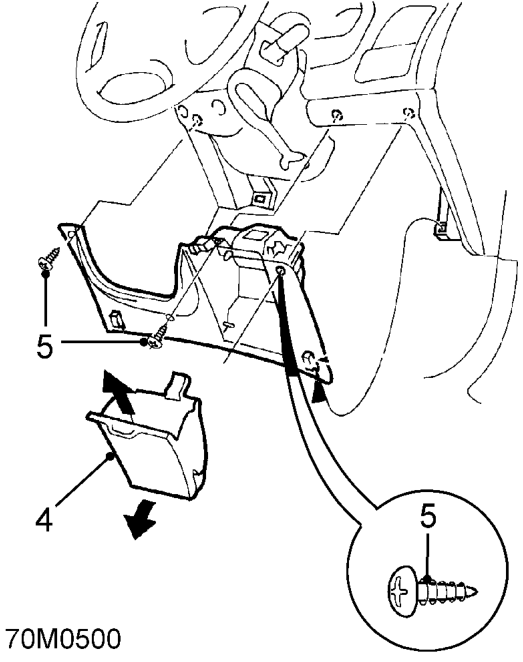

  1. Remove driver’s pocket from fascia lower cover.
  2. Remove 3 screws and remove lower cover.
All models – Remove 3 screws and remove lower cover.

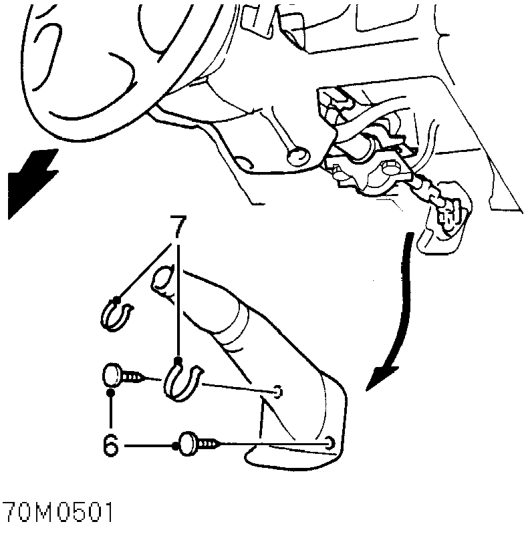

  1. Pull back carpet and remove 2 studs securing steering column universal joint cover to floor.
  2. Remove 2 clips from cover and remove cover.
All models – Remove 2 clips from cover and remove cover.

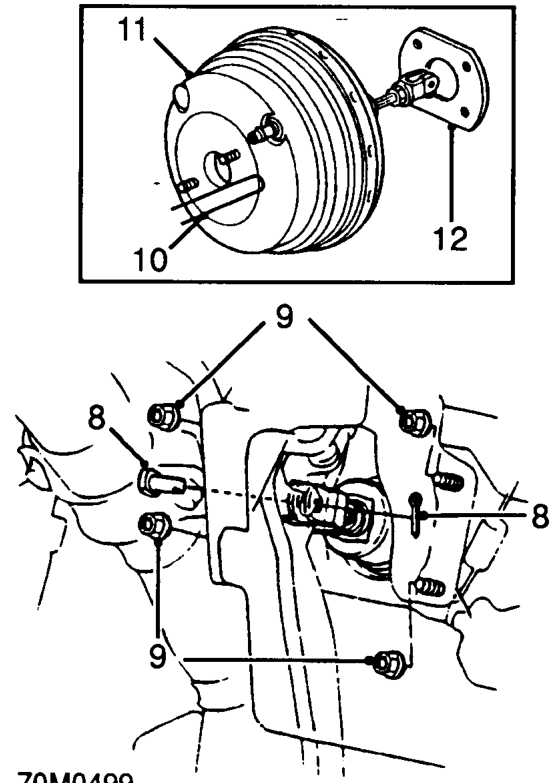

  1. Remove spring clip from clevis pin and remove clevis pin securing brake pedal to servo push rod. Discard spring clip.
  2. Remove 4 flange nuts securing servo to body.
  3. Release clip and disconnect vacuum hose from servo.
  4. Remove servo assembly.
  5. Remove gasket from servo.
