ABS REAR WHEEL SENSOR AND HARNESS - DRUM BRAKE

Service repair no - 70.65.31

Remove

  1. Raise rear of vehicle, one side.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
Abs rear wheel sensor and harness - drum brake – Remove road wheel(s).

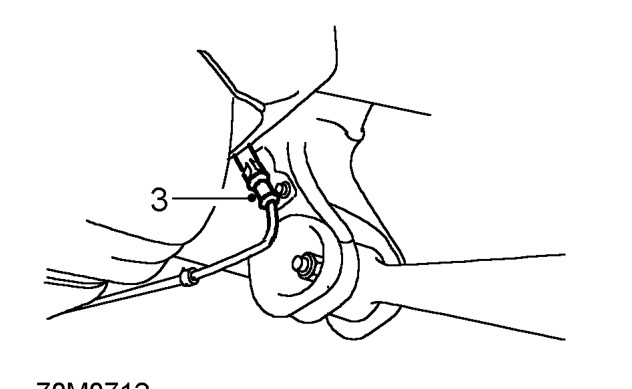

  1. Release sensor multiplug from body clip and disconnect multiplug.
Abs rear wheel sensor and harness - drum brake – Release sensor multiplug from body clip and disconnect multiplug.

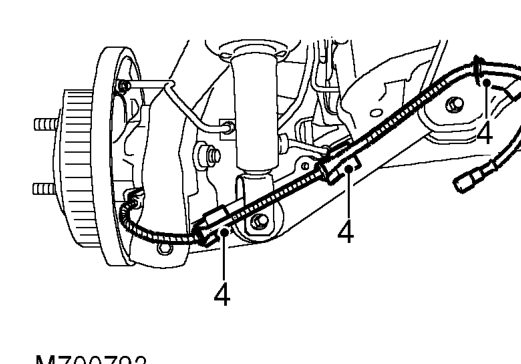

  1. Release sensor harness from 4 brackets.
  2. Remove rear brake drum. See this section.
Abs rear wheel sensor and harness - drum brake – Remove rear brake drum. See this section.

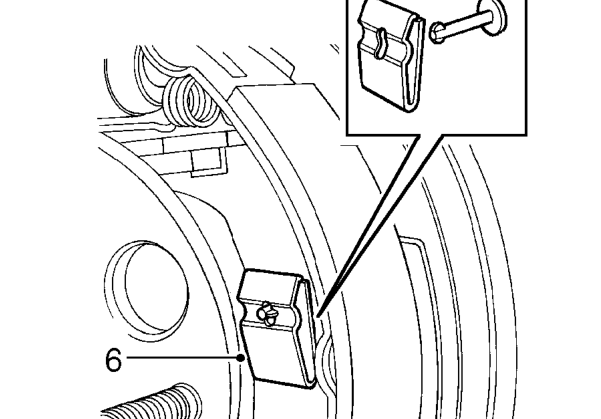

  1. Remove 2 clips and 2 pins retaining brake shoes.
