ABS rear wheel sensor and harness - drum brake (page 4 of 4)

Make

Rover

Model

400 Workshop Manual

Year

1995–2000

Section

Repairs

BrakesABS rear wheel sensor and harness - drum brake · page 4 of 4

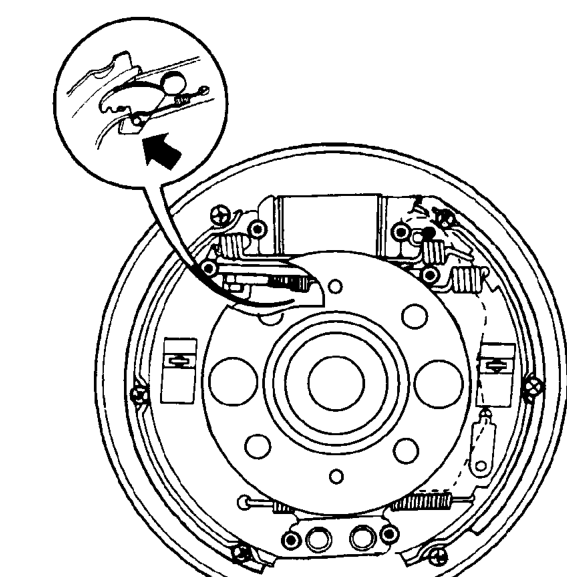

12. Check adjuster cam and if necessary set to minimum adjustment position as follows: lever leading shoe away from wheel cylinder. move adjuster cam back fully and ease shoe back into position.
13. Fit brake shoe retaining pins through backplate and secure with spring clips.
14. Fit brake drum. See this section.
15. Secure sensor harness to brackets.
16. Ensure ’O’ ring is in place and connect sensor multiplug to body harness. Secure multiplug in clip.
17. Check handbrake operation, adjust if necessary.
18. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
19. Remove stand(s) and lower vehicle.
20. To ensure correct operation, the system MUST be checked using TestBook.

24 Brakes
