ABS hydraulic modulator - 97.5my on

ABS HYDRAULIC MODULATOR - 97.5MY ON

Service repair no - 70.25.12

Remove

1. Disconnect battery earth lead.

LHD models

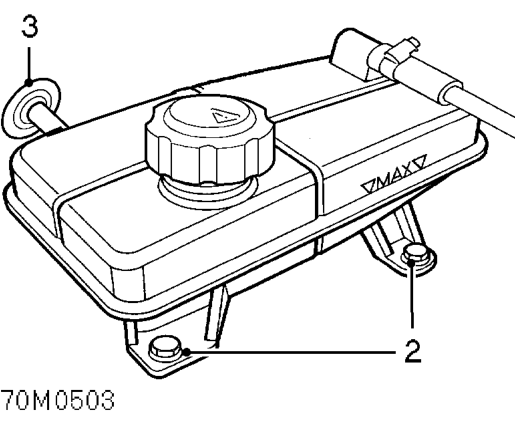

2. Remove 2 bolts securing coolant expansion tank.
3. Disengage expansion tank spigot from grommet and position expansion tank aside.

All models

4. Connect bleed tube to bleed screw, front RH caliper. Open bleed screw and pump brake fluid from master cylinder. Tighten bleed screw.
5. Connect bleed tube to bleed screw, front LH caliper. Repeat above operation.

6. Pull clip outwards and disconnect multiplug from modulator ECU.
7. Position cloth under modulator to absorb fluid spillage.

CAUTION: Do not allow brake fluid to contact paint finished surfaces as paint may be damaged. If spilled, remove fluid and clean area with clean warm water.

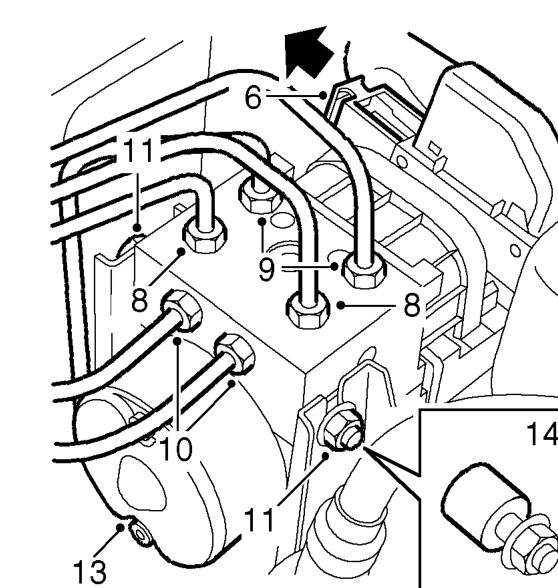

8. Disconnect 2 inlet brake pipe unions from top of modulator.

CAUTION: Plug the connections.

9. Disconnect 2 front outlet brake pipe unions from top of modulator.

CAUTION: Plug the connections.

10. Disconnect 2 rear outlet brake pipe unions from front of modulator.

CAUTION: Plug the connections.

11. Loosen 2 nuts securing modulator to mounting bracket.
12. Release modulator lower bush from mounting bracket spigot.
13. Extract ABS modulator from mounting bracket.
