Rover 400 Workshop Manual (1995-2000)24 · Brakes
24 · Brakes

LHD models

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › LHD models
BrakesLHD models

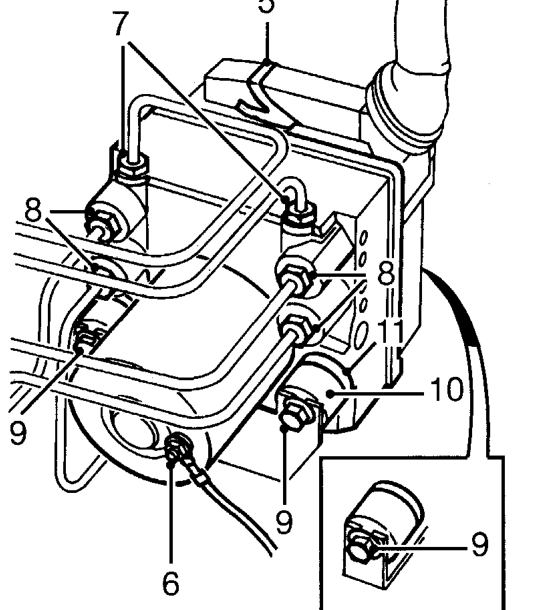

Diagram
  1. Raise clip, lift front of multiplug and disengage from modulator ECU.
  2. Remove nut securing earth lead to modulator and disconnect lead.
  3. Disconnect 2 inlet brake pipe unions from top of modulator.

CAUTION: Plug the connections.

  1. Disconnect 4 outlet brake pipe unions from modulator.

CAUTION: Plug the connections.

  1. Slacken 3 nuts securing modulator to mounting bracket.
  2. Release modulator from mounting bracket and remove. Do not carry out further dismantling if component is removed for access only.
  3. Remove 3 mounting rubbers from modulator.
  4. Fit mounting rubbers to new modulator.

Refit

  1. Fit modulator to mounting bracket and tighten mounting nuts to 10 Nm.
  2. Connect brake pipe unions to modulator, ensuring pipes are connected to their correct ports: MC 1 = Master cylinder primary MC 2 = Master cylinder secondary RF = Right hand front LF = Left hand front RR = Right hand rear LR = Left hand rear
  3. Tighten unions to 14 Nm.
  4. Connect earth lead to modulator, fit and tighten nut.
  5. Connect multiplug to modulator and secure clip.

LHD models

  1. Fit expansion tank to grommet, fit and tighten bolts.

All models

  1. Bleed brakes. See Adjustments.
  2. Connect battery earth lead.
  3. To ensure correct operation, the system MUST be tested using TestBook.
