Rear brake disc

REAR BRAKE DISC

Service repair no - 70.10.33

Remove

1. Raise rear of vehicle.

WARNING: Support on safety stands.

2. Remove road wheel(s).

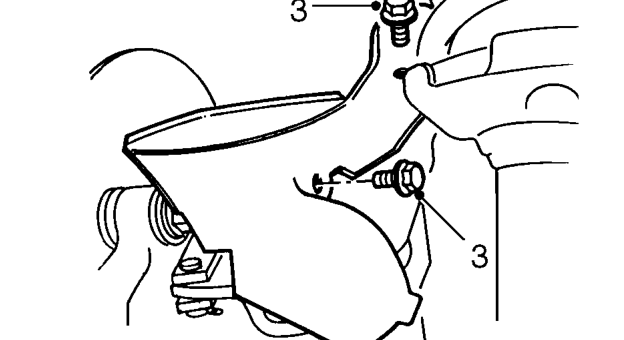

3. Remove 2 bolts securing caliper shield.
4. Remove caliper shield.

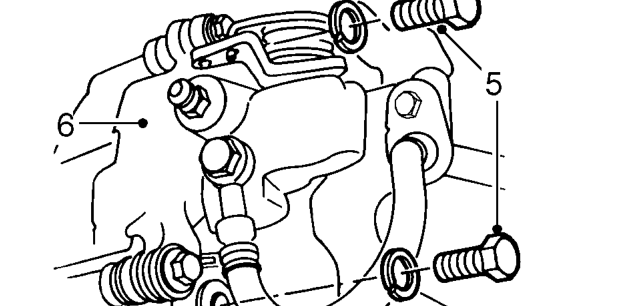

5. Remove 2 bolts securing caliper carrier to stub axle.
6. Release caliper and tie aside.

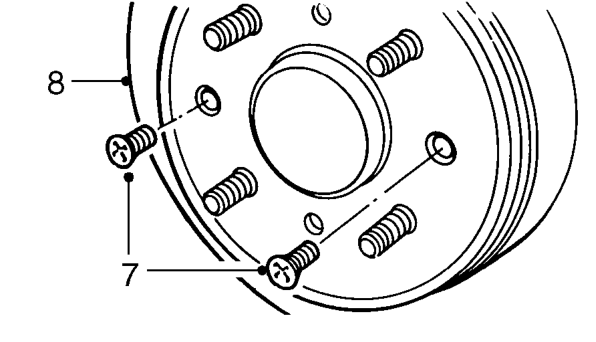

7. Remove 2 screws securing brake disc to hub.
8. Remove disc from hub, use jacking screws if necessary.

Refit

1. Clean hub and disc mating surfaces.
2. Fit disc to hub. Fit and tighten screws to 10 Nm.
3. Check disc run-out. See Adjustments.
4. Clean caliper and stub axle mating faces.
5. Fit caliper to stub axle ensuring brake pads are correctly located each side of disc. Fit bolts and tighten to 108 Nm.
6. Fit caliper shield, fit and tighten bolts to 10 Nm.
7. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
8. Remove stand(s) and lower vehicle.
