ABS REAR WHEEL SENSOR AND HARNESS - DISC BRAKE

Service repair no - 70.25.33

Remove

  1. Raise rear of vehicle, one side.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
Abs rear wheel sensor and harness - disc brake – Remove road wheel(s).

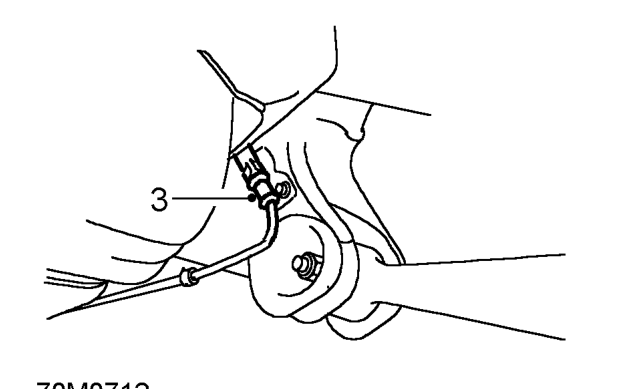

  1. Release sensor multiplug from body clip and disconnect multiplug.
Abs rear wheel sensor and harness - disc brake – Release sensor multiplug from body clip and disconnect multiplug.

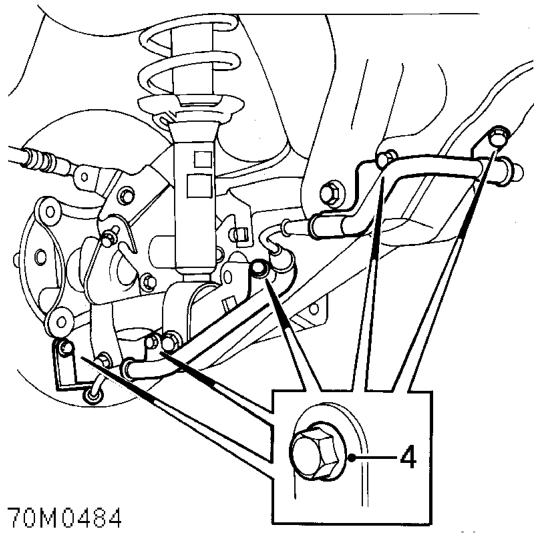

  1. Remove 5 bolts securing sensor harness brackets to body, lower arm and suspension.
Abs rear wheel sensor and harness - disc brake – Remove 5 bolts securing sensor harness brackets to body, lower arm and suspension.

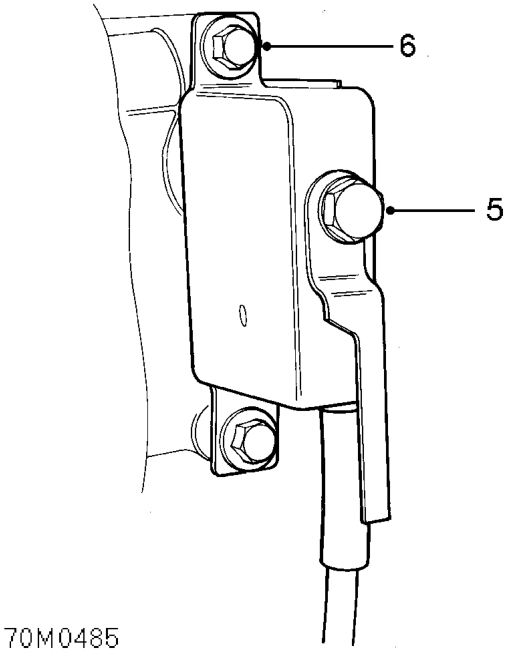

  1. Remove bolt securing sensor harness bracket to sensor cover.
  2. Remove 2 bolts securing sensor cover to suspension hub and remove cover.
Abs rear wheel sensor and harness - disc brake – Remove 2 bolts securing sensor cover to suspension hub and remove cover.

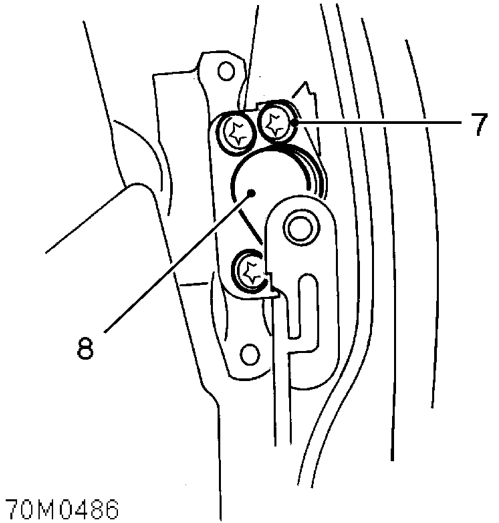

  1. Remove TX30 Torx screw securing sensor to hub adaptor.
  2. Remove sensor and harness.
