Brake proportioning valve - non ABS

BRAKE PROPORTIONING VALVE - NON ABS

Service repair no - 70.25.15

Remove

1. Position cloth to absorb fluid spillage.

CAUTION: Do not allow brake fluid to contact paint finished surfaces as paint may be damaged. If spilled, remove fluid and clean area with clean warm water.

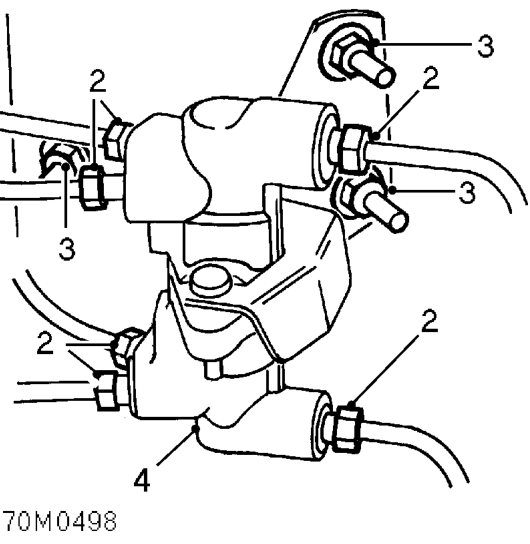

2. Disconnect 6 brake pipes from valve.

CAUTION: Plug the connections.

3. Remove 3 nuts securing valve bracket to bulkhead.
4. Remove valve and bracket assembly.

CAUTION: Do not remove screws securing bracket to valve.

Refit

1. Position valve and bracket assembly align pipes to valve and start unions.
2. Align valve bracket to body and tighten nuts to 10 Nm.
3. Tighten pipe unions to 19 Nm.
4. Remove cloth.
5. Bleed brakes. See Adjustments.

FRONT BRAKE PADS

Service repair no - 70.40.02

1. Raise front of vehicle.

WARNING: Support on safety stands.

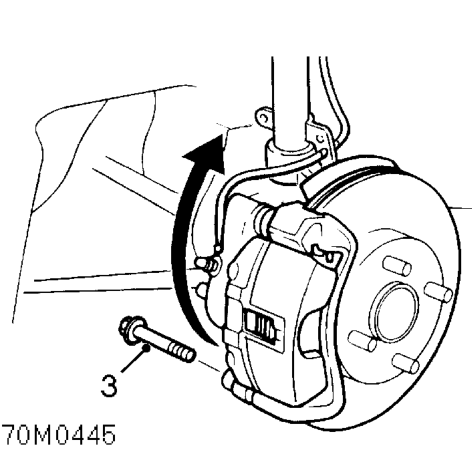

2. Remove road wheel(s).

WARNING: Brake pads must be renewed in axle sets only. Braking efficiency may otherwise be impaired.

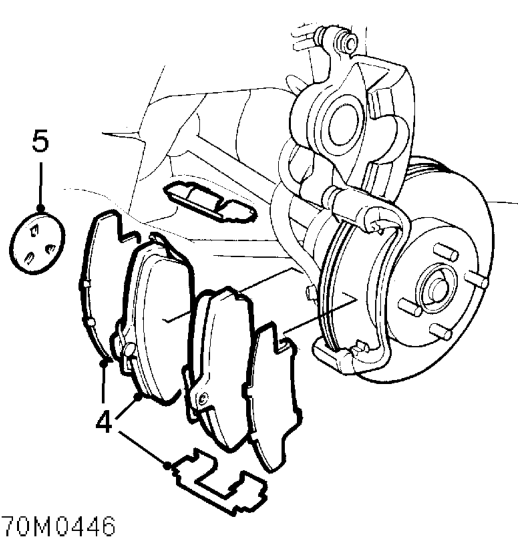

3. Remove lower guide pin bolt from caliper housing and pivot housing upwards.

4. Remove 2 brake pads, shims and retainers from caliper carrier.
5. Remove inner shim from caliper piston.
