Rover 400 Workshop Manual (1995-2000)24 · Brakes
24 · Brakes

Servo assembly

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Servo assembly
BrakesServo assembly

Refit

  1. Clean master cylinder and servo mating surfaces.

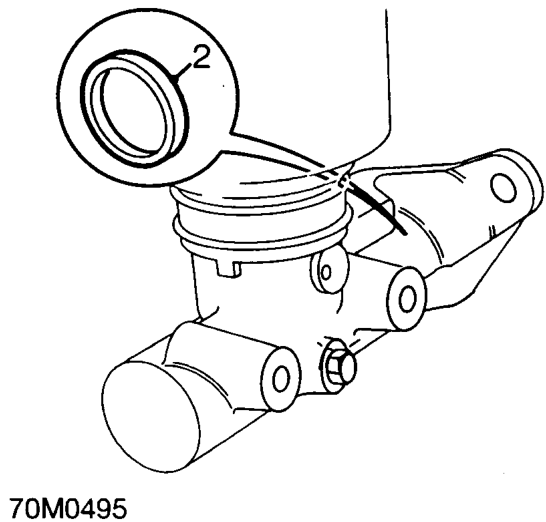

Clean master cylinder and servo mating surfaces.
  1. Ensure rod seal is fitted to master cylinder.
  2. Align servo push rod and fit master cylinder to servo.
  3. Fit nuts and spring washers, tighten to 15 Nm.
  4. Connect primary and secondary brake pipes, tighten unions to 19 Nm.
  5. Connect fluid level switch leads.
  6. Bleed brakes. See Adjustments.

SERVO ASSEMBLY

Service repair no - 70.50.01

Remove

  1. Remove brake master cylinder. See this section.

Manual models

Manual models – Remove brake master cylinder. See this section.
  1. Remove 2 bolts securing coolant expansion tank.
  2. Disengage spigot from grommet and position expansion tank aside.
