Fluid level switch

FLUID LEVEL SWITCH

Service repair no - 70.25.08

Remove

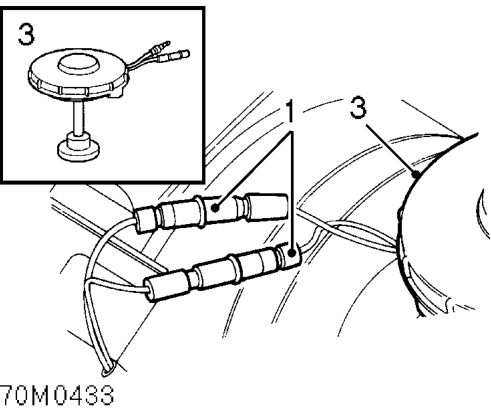

1. Disconnect switch leads.
2. Clean area around reservoir cap.
3. Remove cap/switch assembly.

CAUTION: Do not allow brake fluid to contact paint finished surfaces as paint may be damaged. If spilled, remove fluid and clean area with clean warm water.

Refit

1. Check and top-up fluid level.
2. Fit cap/switch assembly.
3. Connect switch leads.

BRAKE MASTER CYLINDER

Service repair no - 70.30.08

Remove

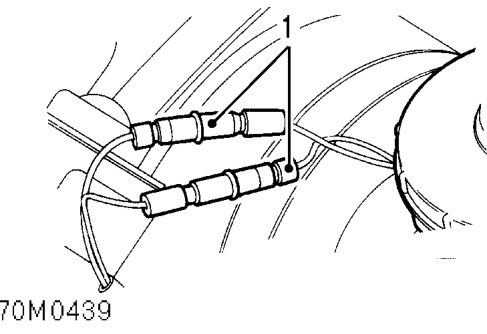

1. Disconnect fluid level switch leads.
2. Position cloth under master cylinder to absorb fluid spillage.

CAUTION: Do not allow brake fluid to contact paint finished surfaces as paint may be damaged. If spilled, remove fluid and clean area with clean warm water.

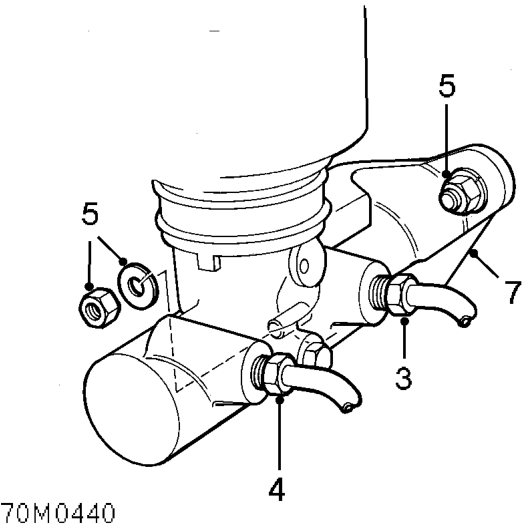

3. Disconnect secondary system pipe union from master cylinder.
4. Disconnect primary system pipe union from master cylinder.

CAUTION: Plug the connections.

5. Remove 2 nuts and spring washers securing master cylinder.
6. Remove master cylinder.
