BrakesABS rear wheel sensor and harness - drum brake · page 2 of 4

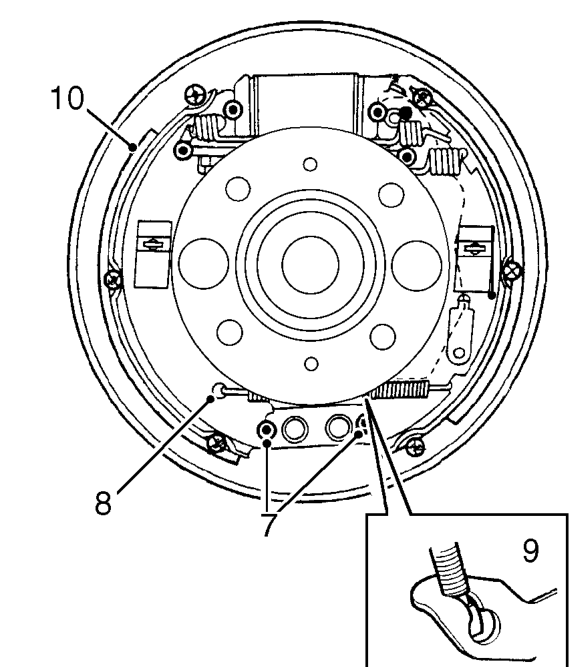

- Ease one brake shoe out of retaining groove in abutment followed by other shoe.
- Detach return spring from leading shoe end and remove spring.
NOTE: The forward shoe is the LEADING shoe, the TRAILING shoe has the handbrake lever attached to it.
- Release hand brake cable from brake shoe lever.
- Manoeuvre shoe assembly around wheel cylinder and remove.
CAUTION: Ensure edges of brake shoes do not damage wheel cylinder dust covers.

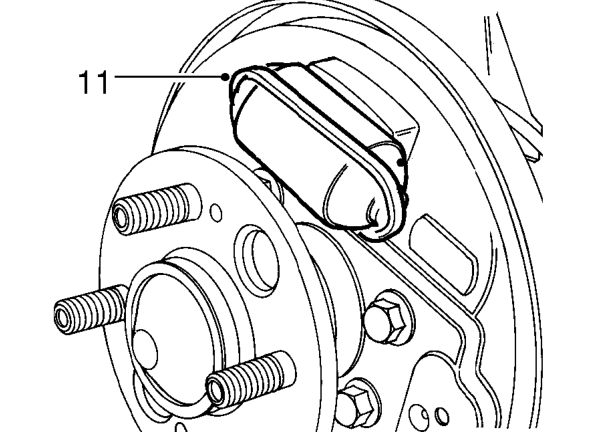

- Fit an elastic band around wheel cylinder to retain pistons.
