REAR TRAILING ARM AND STUB AXLE - DRUM BRAKE WITH ABS

Service repair no - 64.35.46

Remove

  1. Remove rear hub. See this section.
Rear trailing arm and stub axle - drum brake with abs – Remove rear hub. See this section.

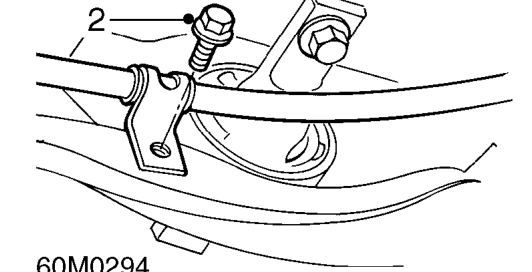

  1. Remove bolt securing handbrake cable clip to trailing arm.
Rear trailing arm and stub axle - drum brake with abs – Remove bolt securing handbrake cable clip to trailing arm.

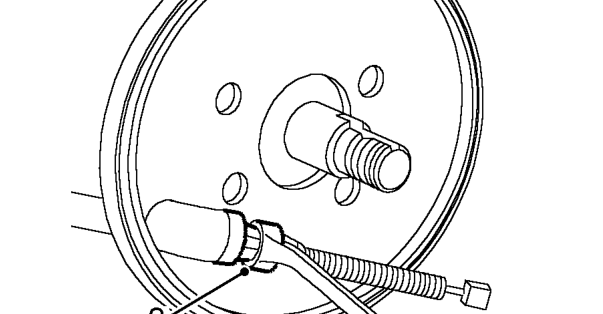

  1. Using a 12mm ring spanner to compress tangs on handbrake cable, release handbrake cable from backplate and withdraw cable from trailing arm.
Rear trailing arm and stub axle - drum brake with abs – Using a 12mm ring spanner to compress tangs on handbrake cable, release handbrake cable fr

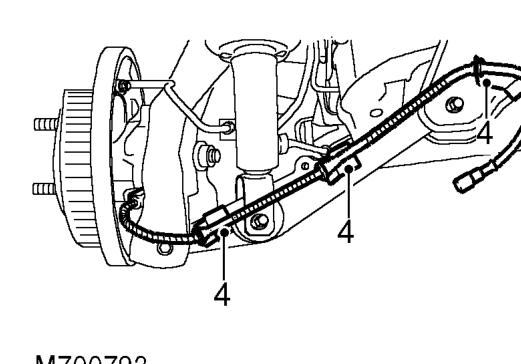

  1. Release ABS sensor harness from brackets on lower arm.
  2. Support lower arm on jack against spring tension.
Rear trailing arm and stub axle - drum brake with abs – Support lower arm on jack against spring tension.

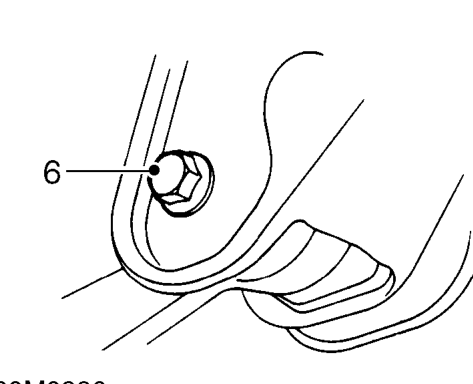

  1. Loosen bolt securing lower arm to body.
Rear trailing arm and stub axle - drum brake with abs – Loosen bolt securing lower arm to body.

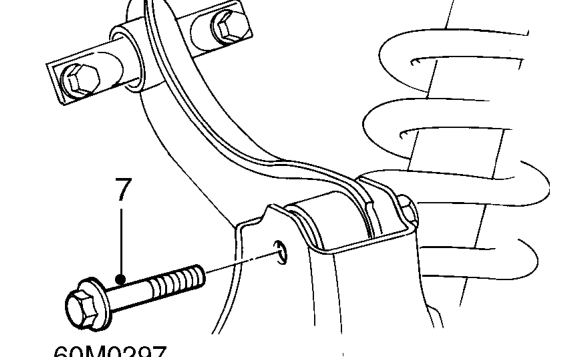

  1. Remove bolt securing trailing arm to upper arm.
