Rear hub and bearing - drum brake with ABS

Refit

1. Smear bore of each bush with rubber grease.
2. Fit bushes to anti-roll bar, ensuring splits face brackets.
3. Fit clamps to bushes.
4. Fit LH stabilising link to anti-roll bar, tighten bolt to 14 Nm.
5. Position anti-roll, fit clamp bolts and tighten to 14 Nm.
6. Fit bolt securing RH stabilising link to lower arm and tighten to 45 Nm.
7. Remove stand(s) and lower vehicle.

REAR HUB AND BEARING - DRUM BRAKE WITH ABS

Service repair no - 64.15.14

Remove

1. Raise rear of vehicle.

WARNING: Support on safety stands.

2. Remove road wheel(s).

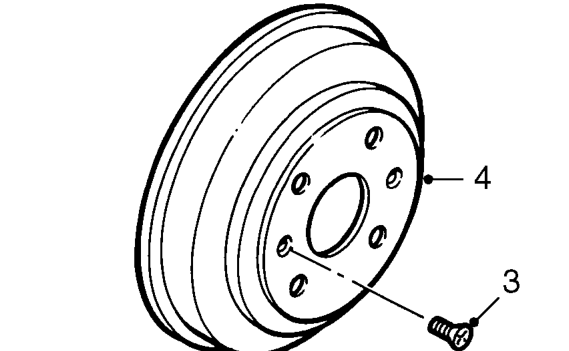

3. Remove 2 screws securing brake drum to hub.
4. Remove brake drum.

NOTE: If the drum is held by the brake shoes, release the self-adjust mechanism. See BRAKES, Repairs.

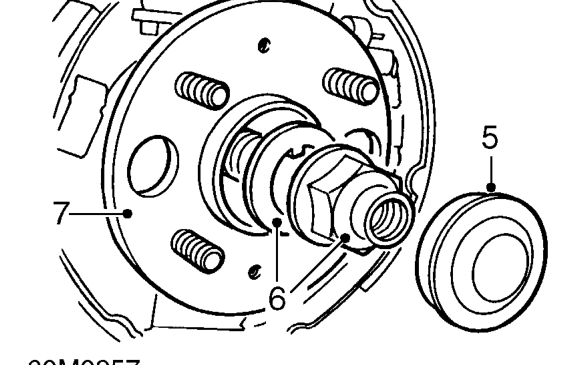

5. Remove hub nut cap.
6. Knock back staking and remove hub nut and washer. Discard nut.
7. Remove hub assembly.
