ANTI-ROLL BAR - MANUAL GEARBOX

Service repair no - 60.10.01

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

Anti-roll bar - manual gearbox – Raise front of vehicle.
  1. Hold link against rotation and remove flange nut from top of each anti-roll bar link.
  2. Remove cup washers and bushes.
  3. Remove exhaust front pipe to manifold gasket. See MANIFOLD & EXHAUST SYSTEMS, Repairs.

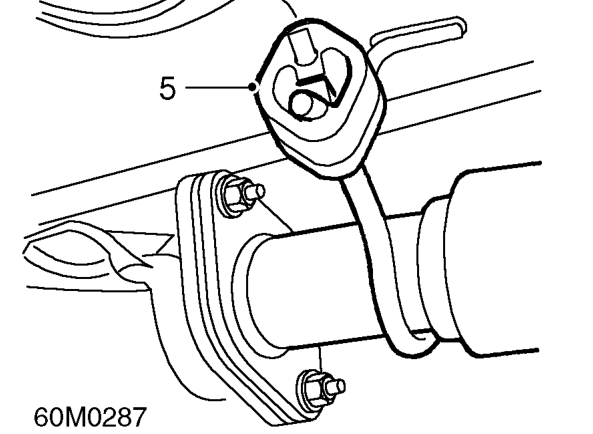

Anti-roll bar - manual gearbox – Remove exhaust front pipe to manifold gasket. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
  1. Release front pipe mounting rubber.

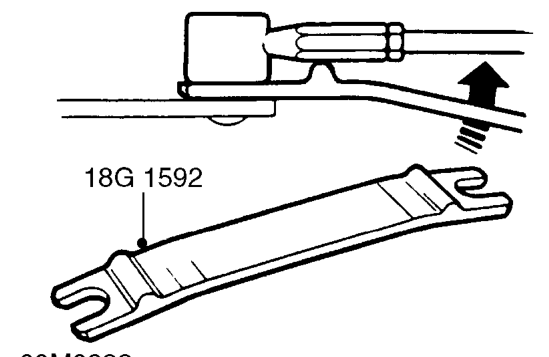

Anti-roll bar - manual gearbox – Release front pipe mounting rubber.
  1. Disconnect gear change linkage ball joints from levers using tool 18G 1592 .
